ED5Xeco
Compact 5-Axis Dry Milling for Everyday Dental Production

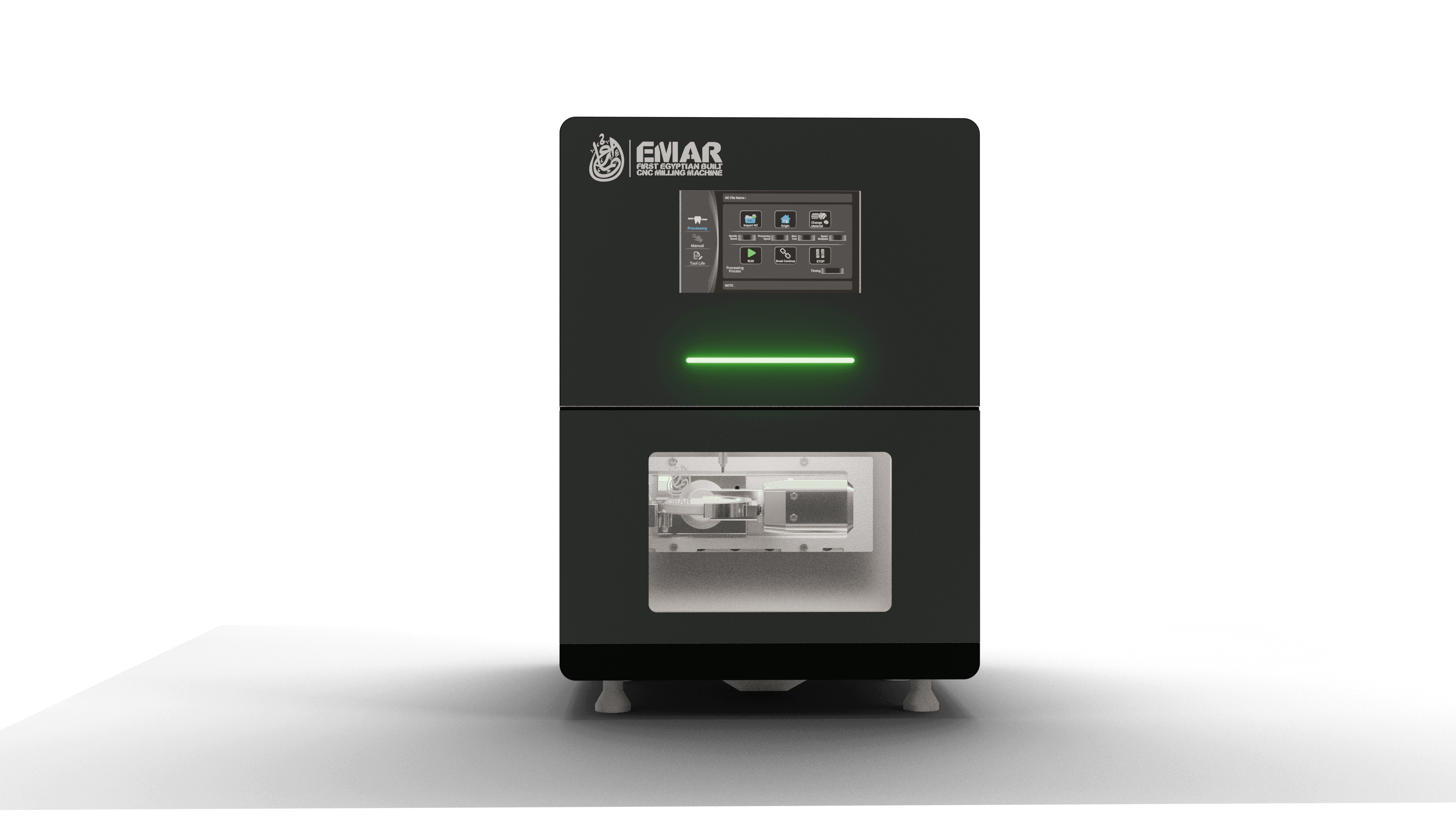

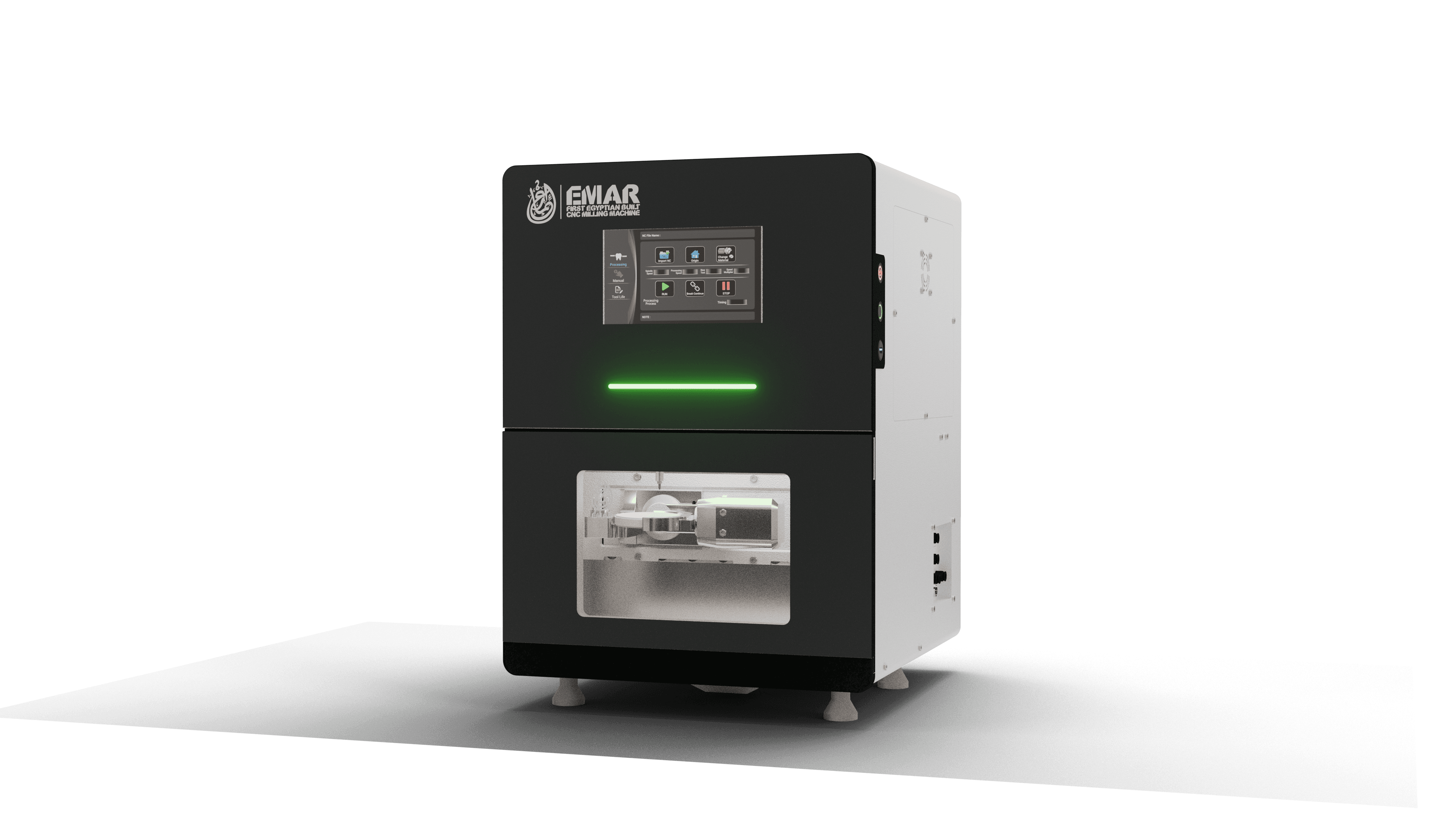

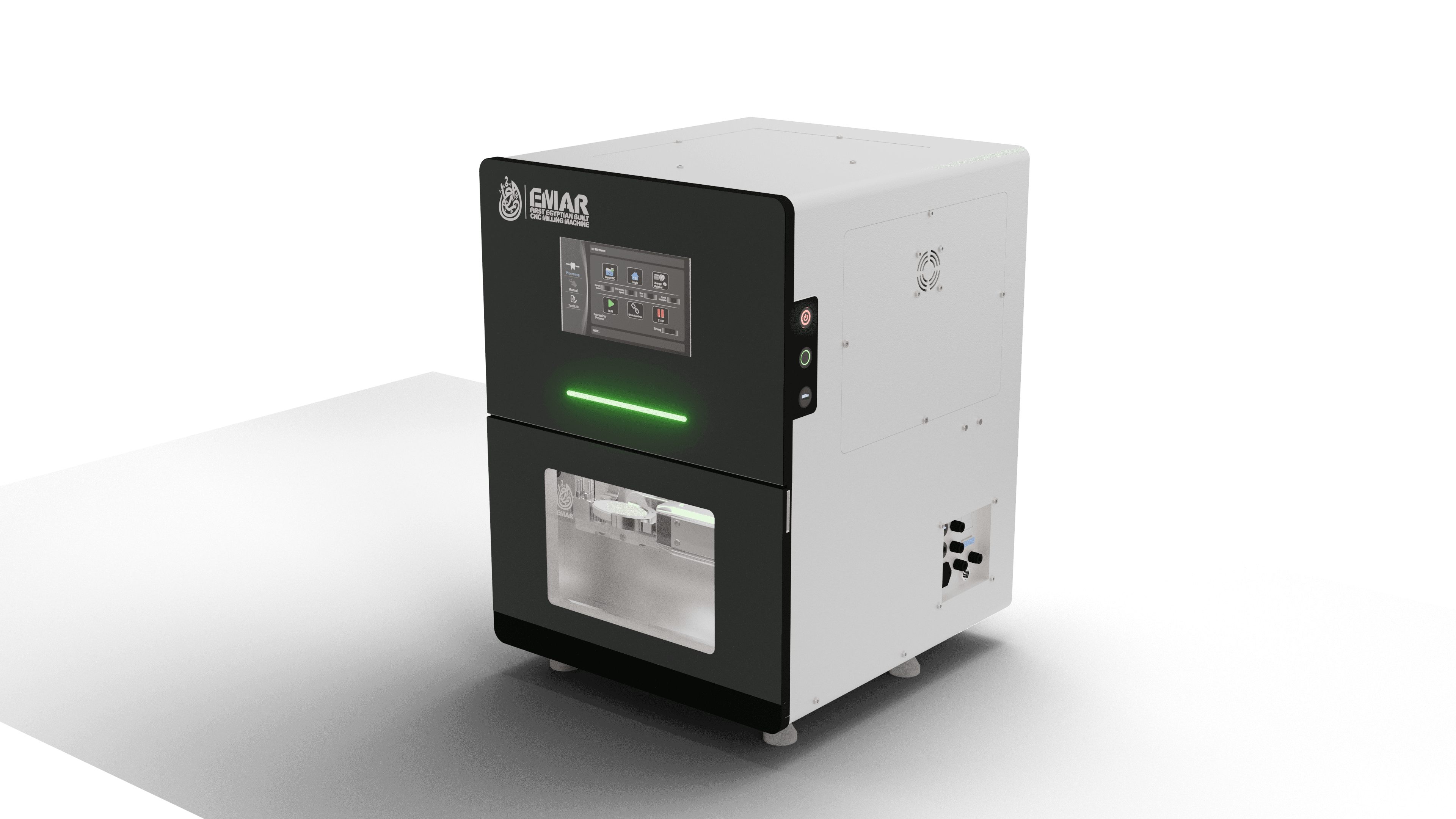

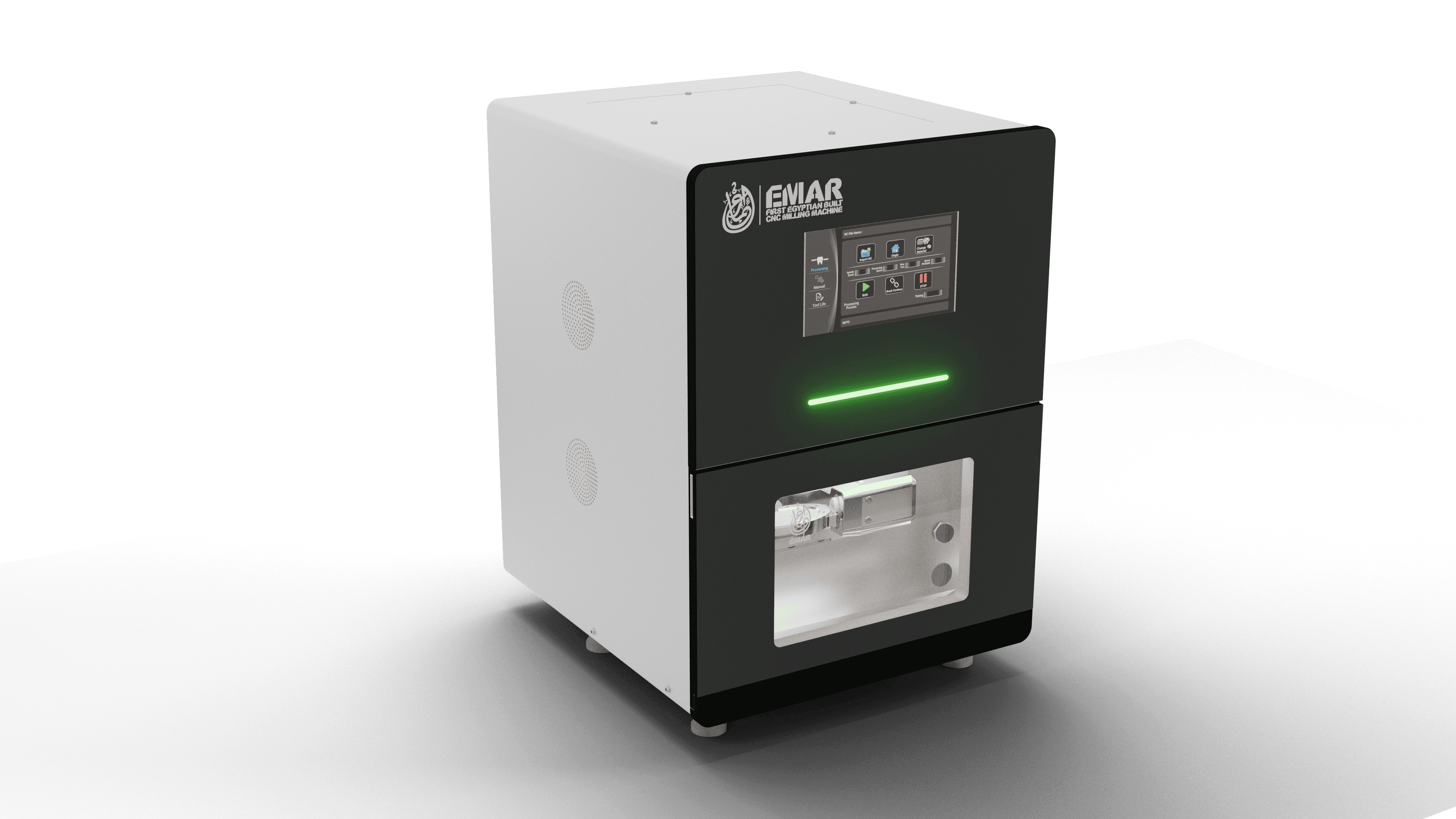

The ED5Xeco is a practical, economical Dental Milling Machine for Dental Labs and small clinics, combining essential precision with a compact footprint. With 5-Axis Simultaneous Machining and Automatic Tool Change, it handles applications from Crowns and Inlays to 3–14 Unit Bridges and Splints, with Dry Milling support for Zirconia, PMMA, PEEK, and Wax.
Key Features & Benefits
5-Axis Simultaneous Machining
5-Axis Simultaneous Machining provides greater access to complex details, Diverging Stumps, and Undercuts, reducing the need for repositioning and reworking
700 W / 60,000 RPM Air-Cooled Spindle
A 0.7 kW Air-Cooled Spindle with speeds up to 60,000 RPM provides the high-speed performance required for everyday dental milling applications
90° Buccal & Labial Milling
Enables 90° buccal and labial milling for improved access to complex geometries and detailed restorations
Absolute Encoder & Power Recovery
Absolute Encoder Servo System eliminates re-homing after power loss, allowing machining to resume from where it stopped
10 µm Milling Accuracy
High-Precision Milling .. Achieves milling accuracy down to 10 µm for precise and consistent restorations
Compact Desktop Design
With dimensions of 520 × 560 × 720 mm and a weight of 120 kg, the ED5Xeco is designed for Dental Labs and clinics working with limited space
Dry Milling
Designed for Dry Machining of essential Dental Materials such as Wax, Zirconia, and PMMA, covering a wide range of everyday lab applications
High Value for Money
The ED5Xeco offers a practical balance of performance, compact size, and operating cost, making it a suitable choice for Dental Labs looking for an economical in-house Milling solution
Technical Specifications
Full specifications for the ED5X eco. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
Applications
- Copings
- Crowns
- Inlays
- Onlays
- Bridges (3–14 units)
| Number of Axes | 5-Axis Simultaneous |
| Spindle Power/Speed | 0.7 kW / 60,000 rpm |
| Buccal & Labial Milling | 90° Milling |
| Milling Accuracy | 10 µm |
| Tool Magazine Capacity | 6 Bur |
| Spindle Type | ATC air-cooled |
| Material Loading | Manual single blank holder |
| Processing Mode | Dry machining |
| Clamping System | Ø98 / 98.5 mm Disc – C-Clamp System |
| Chassis Material | Aerospace-grade aluminum |
