Wet Processing

Dry
Milling
Temperature Control
6mm 16Tool Magazine

CAD/CAM Blocks

Touch Screen

Blank processing

5th Axis

ED5X

HIGHLIGHTS

3



AUTOMATIC TOOL CHANGE

16 tool magazine
6 mm Max Ø

Cast Iron Icon
HYBRID CAST IRON ALUMINUM

Optimum rigidity
with minimum noise and vibrations

High quality comp. Icon
HIGH-QUALITY COMPONENTS

Leading linear and
bearing components

2
5 AXLE SIMULTANEOUS
MACHINING

High-resolution measuring
systems in all axes

Water cooled Icon
WATER
COOLED SPINDLE

2.2 kW 60k.RPM high speed spindle
for precise results with optimum finish

24-7 Icon
DURABLE
AROUND THE CLOCK

Non-stop productivity
without compromising quality

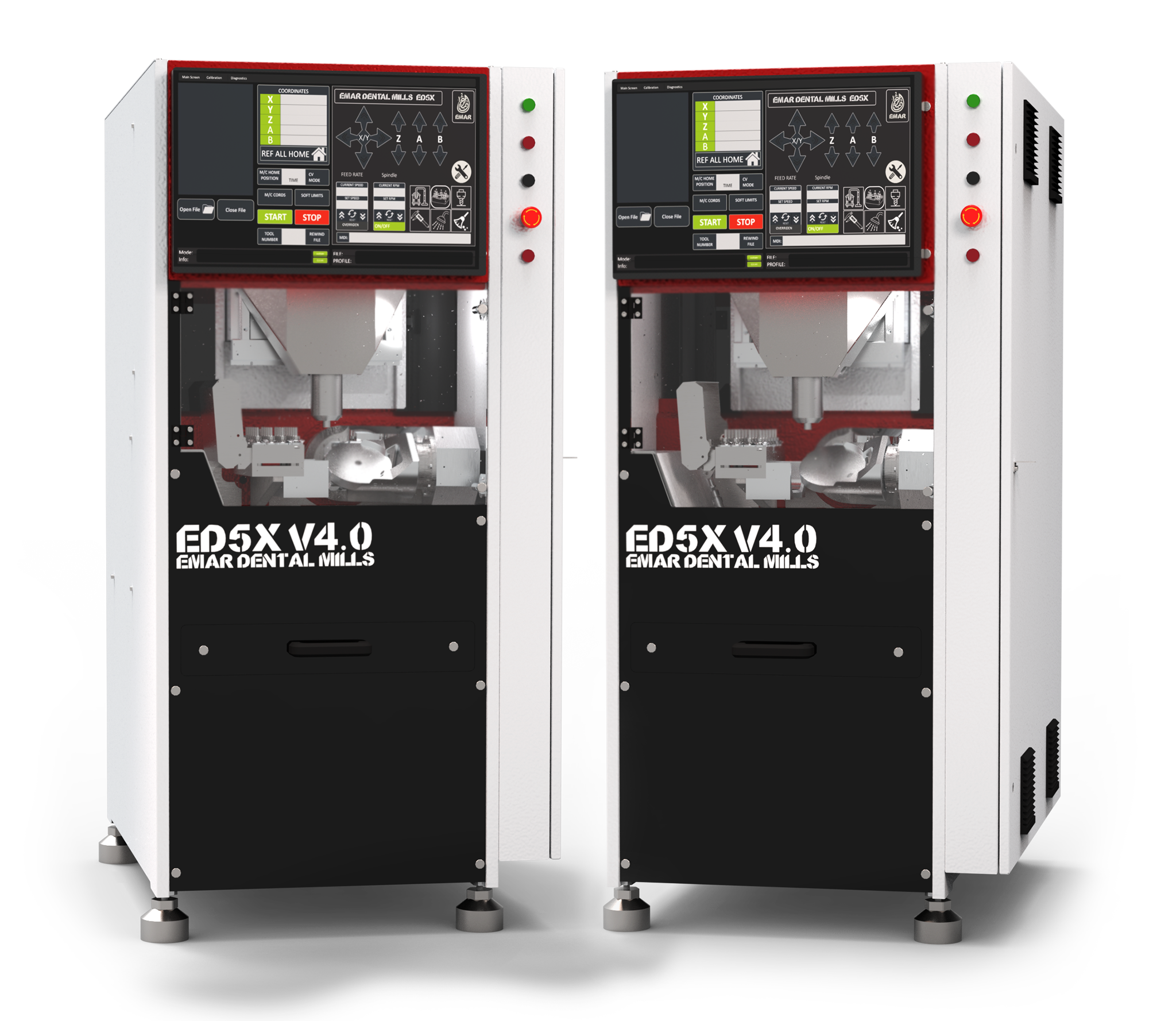

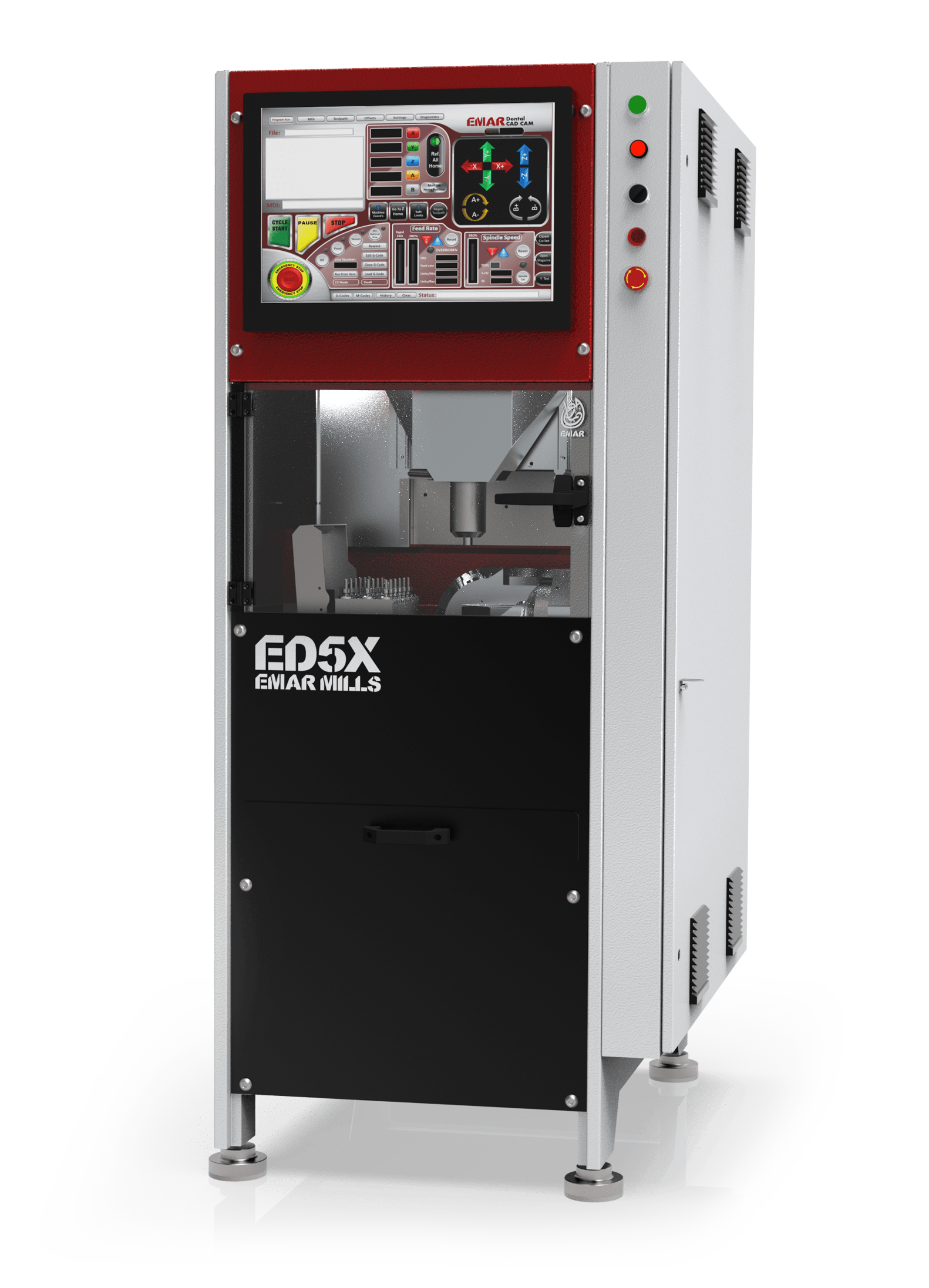

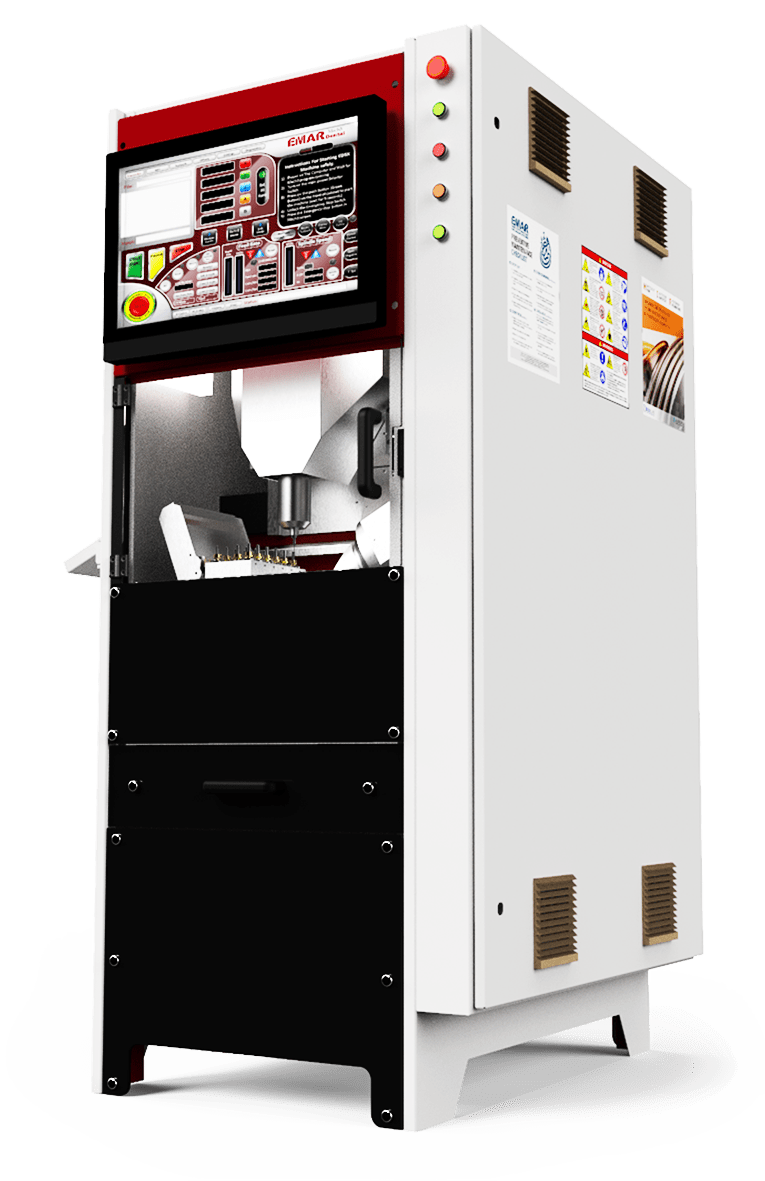

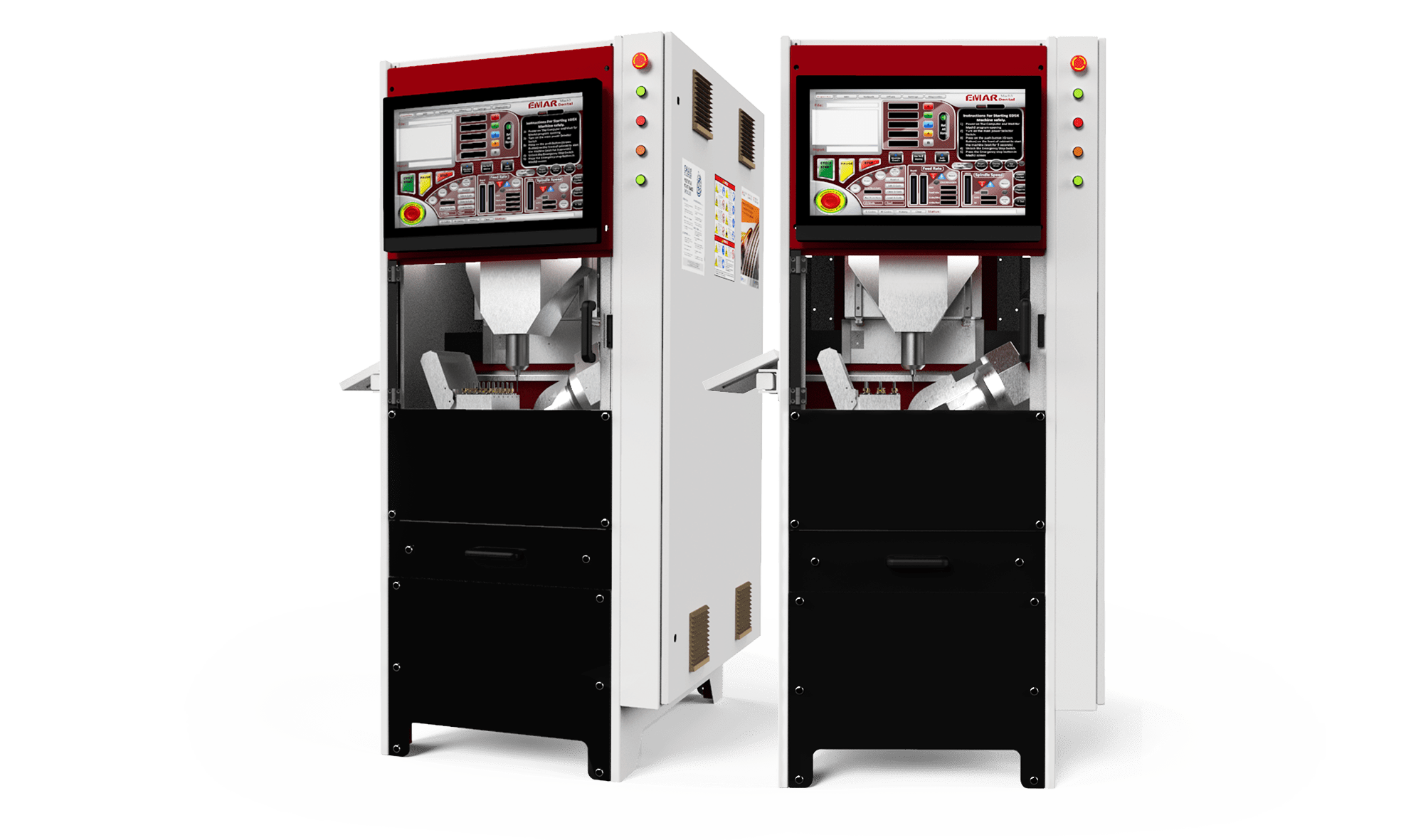

ED5X EMAR

DENTAL MILLS



EMAR dental mills are equipped with high-quality industrial milling technologies, such as grey cast-iron  chassis, stainless steel enclosures, ground ball screw and high accuracy AC servo motors in all axes, as well as absolute tool length measuring system, and high  speed main spindles.

The extremely stable design of the grey cast iron base, along with high dynamic aerospace aluminum grade alloy parts, which provide maximum vibration damping and stability, enabling precise machining in round blank and block form.

The ED5X components are designed for precision, longevity and with the latest technological standards, as it includes a fully integrated automatic 14–tool change system, which enables you to operate the machine system at full capacity around the clock,  while maintaining consistent high precision. Thus, the machine system is ideally suited for large labs and milling centers, where these high-quality standards and large quantities are at the forefront.

EMAR‘s 5-axis simultaneous technology can produce complex dentures with diverging stumps and undercut areas without further rework, while offering high equipment flexibility. ED5X is unmatched when it comes to price to performance ratio.

ED5X

SPECIFICATIONS

Dimensions (WxDxH)

800 x 100 x 1800 mm

Number of axes

5

Number of tools

16 tool magazine

Spindle type

ATC water cooled

Pmax ~ speed Max.

2.5 kW 60,000 rpm

Guides and bearings

HIWIN

Material change

Manual single blank holder

Suitable for

Dry machining/Wet processing

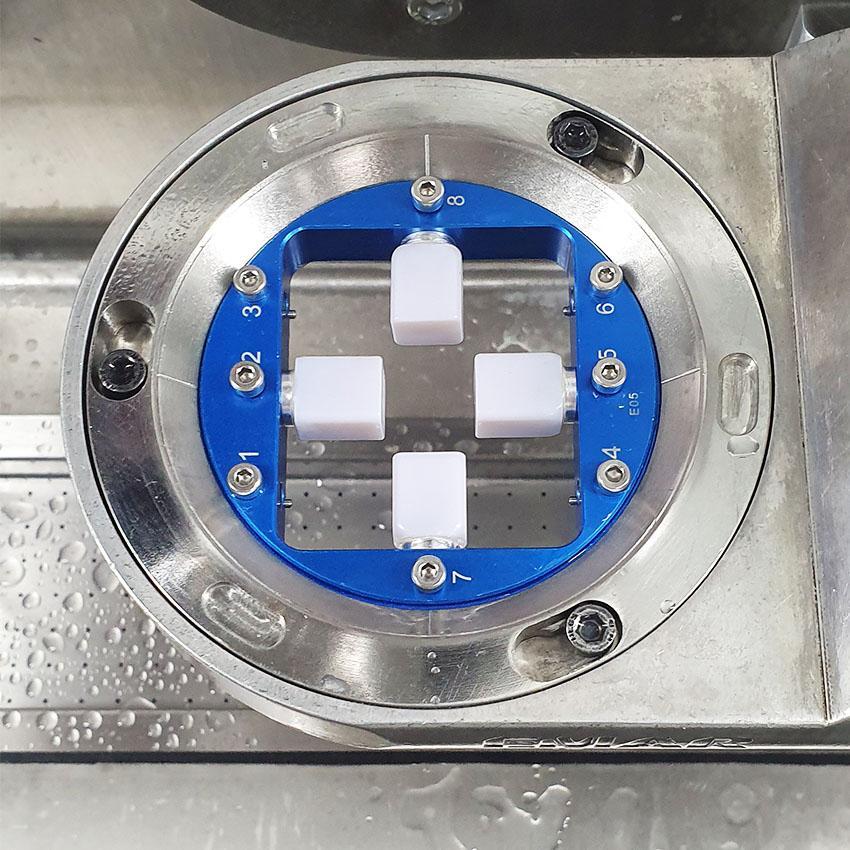

Clamping system

Block processing

(Standard 98 mm)

(CAD/CAM blocks)

Chassis

Hybrid cast iron & aluminum

Motors and drivers

AC servo system

Control

Mach-3

Weight

450 kg

EMAR reserves the right to make changes to technical specs without prior notice

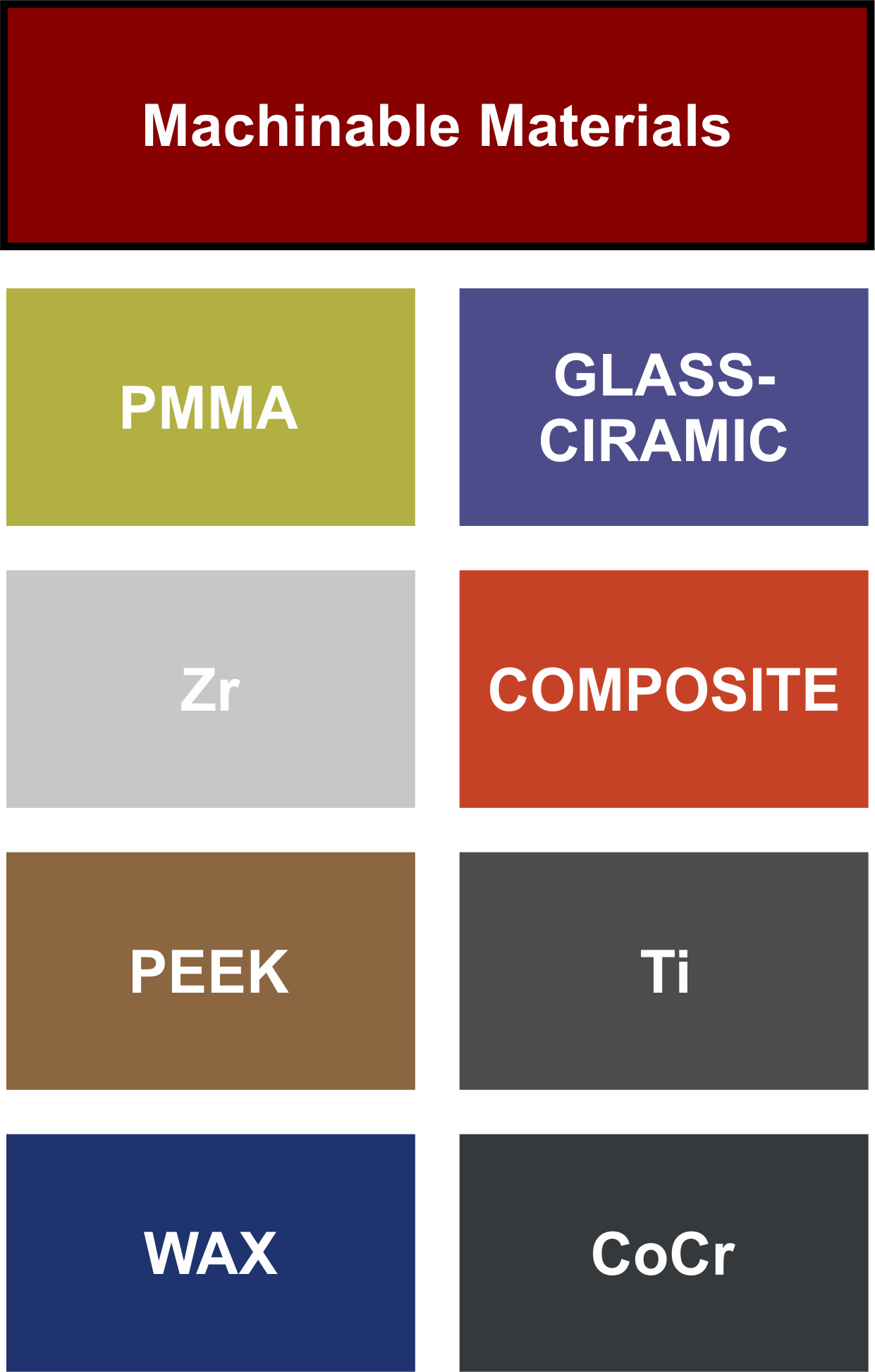

Machinable materials

Titanium, Chromium-cobalt,

Pmma, Peek, Plastics, Composites,

Wax,  Zirconia, hybrid Ceramics,

Glass Ceramics,  Sintered metal

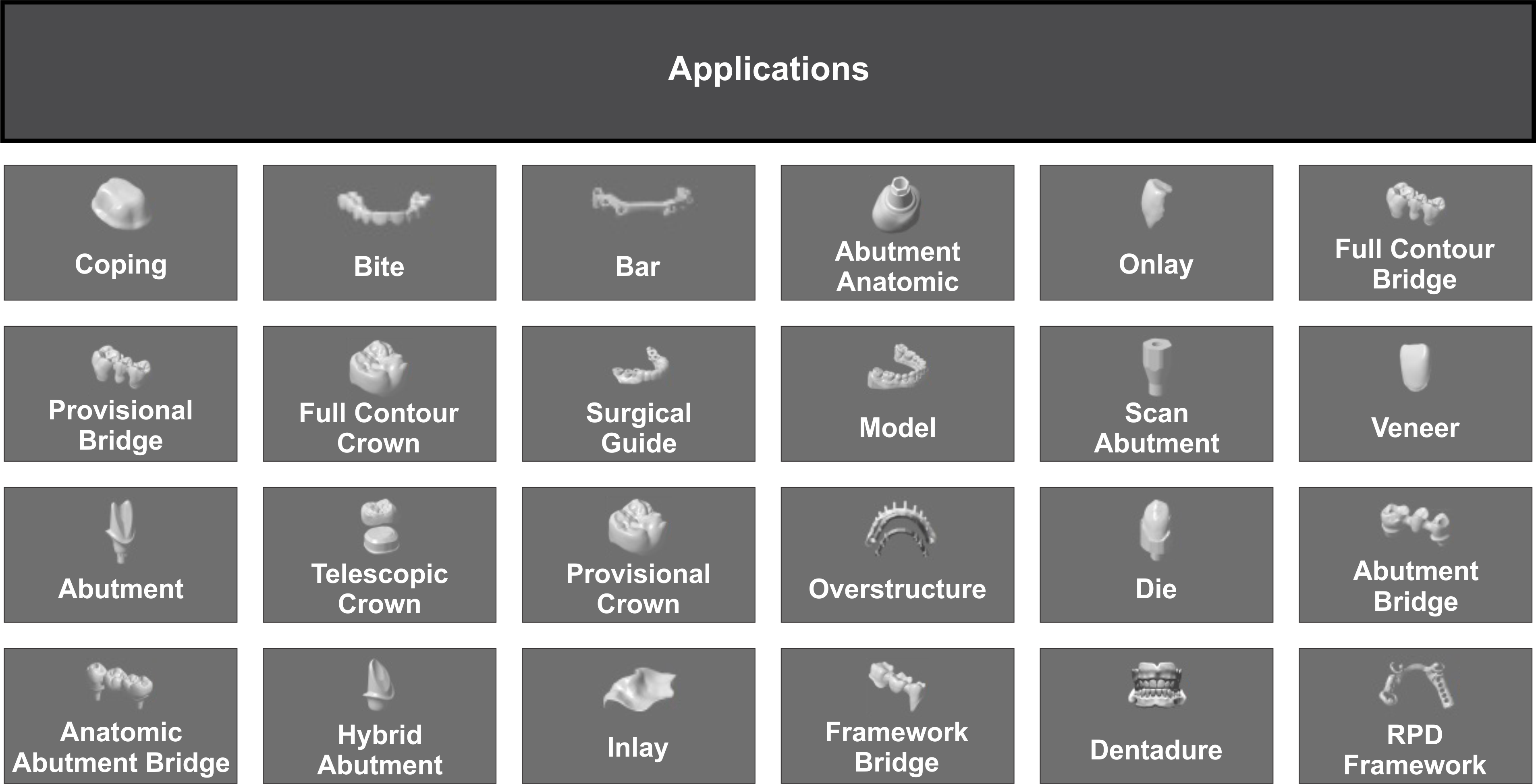

Suitable for

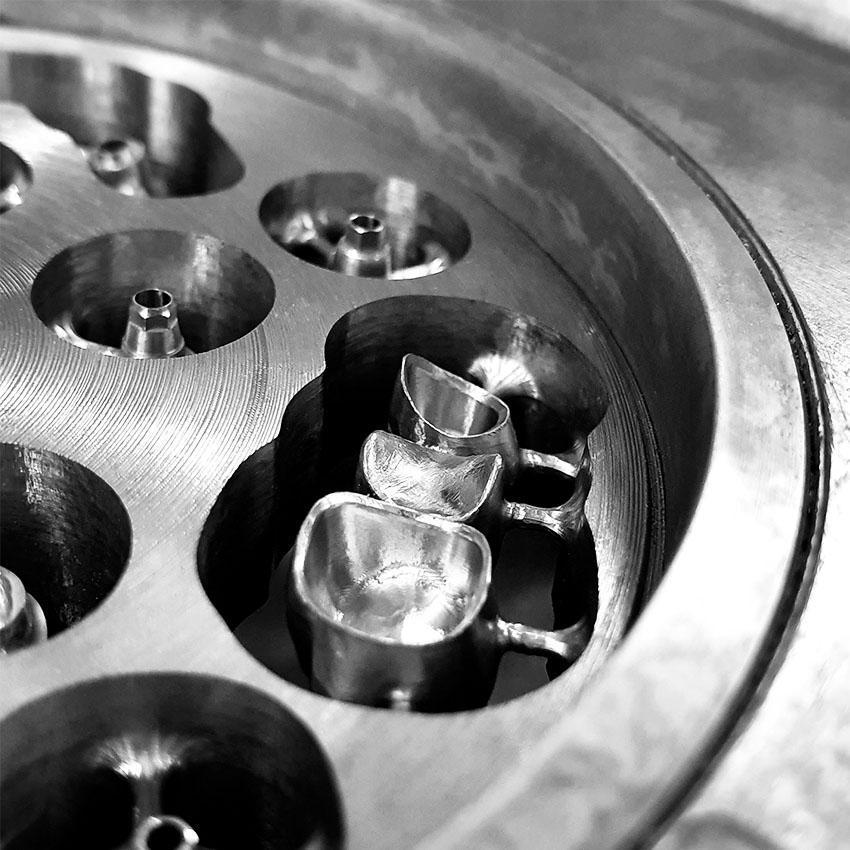

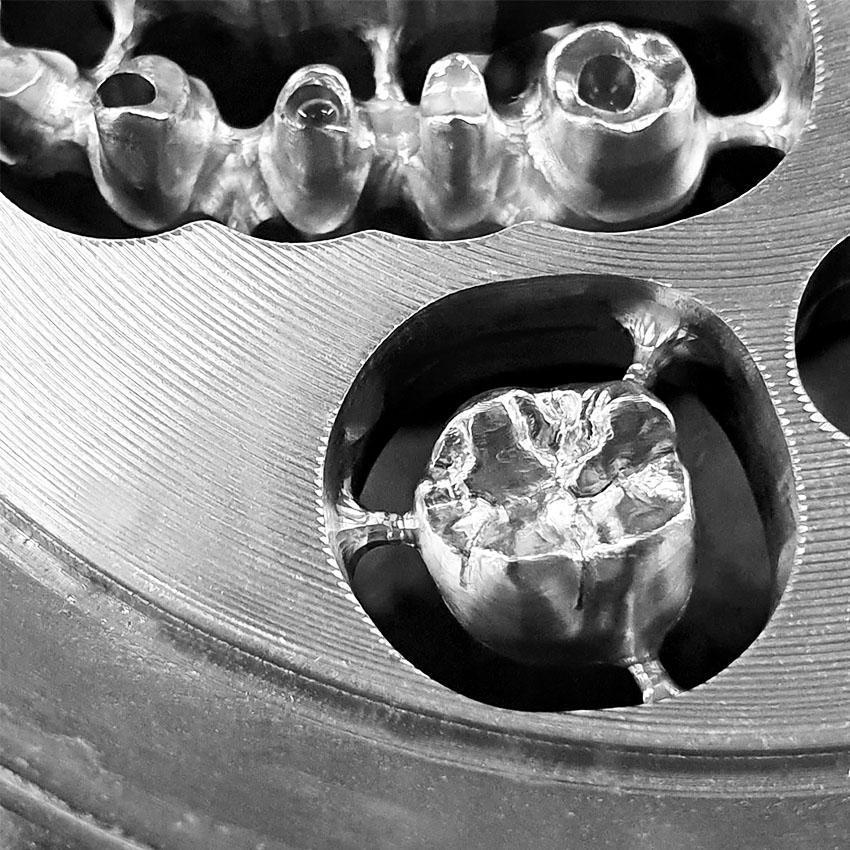

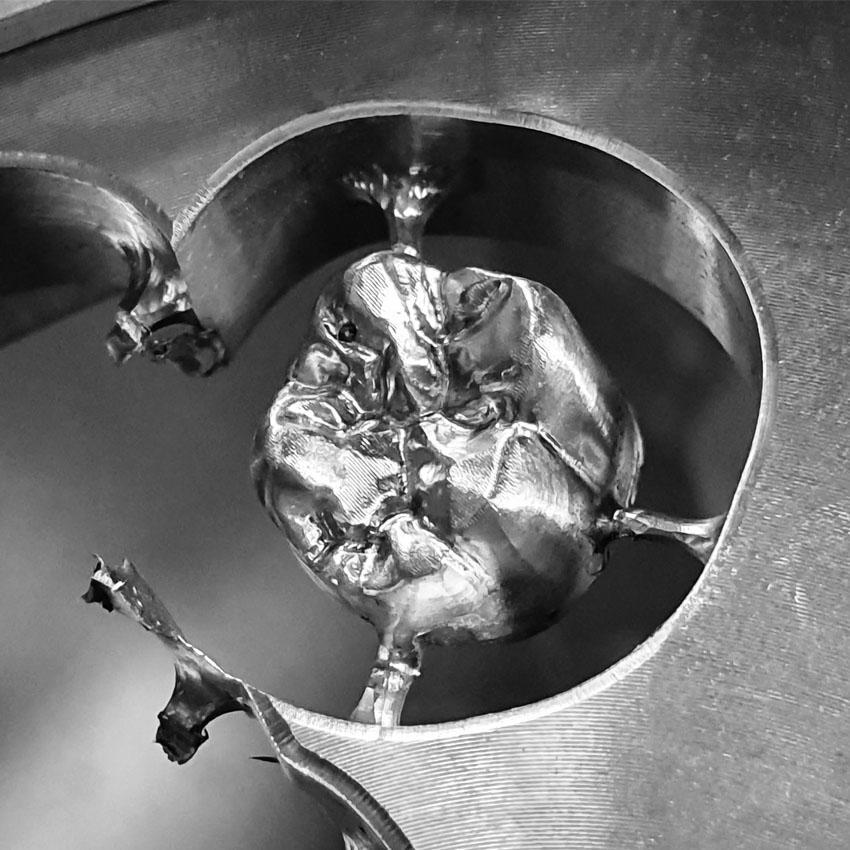

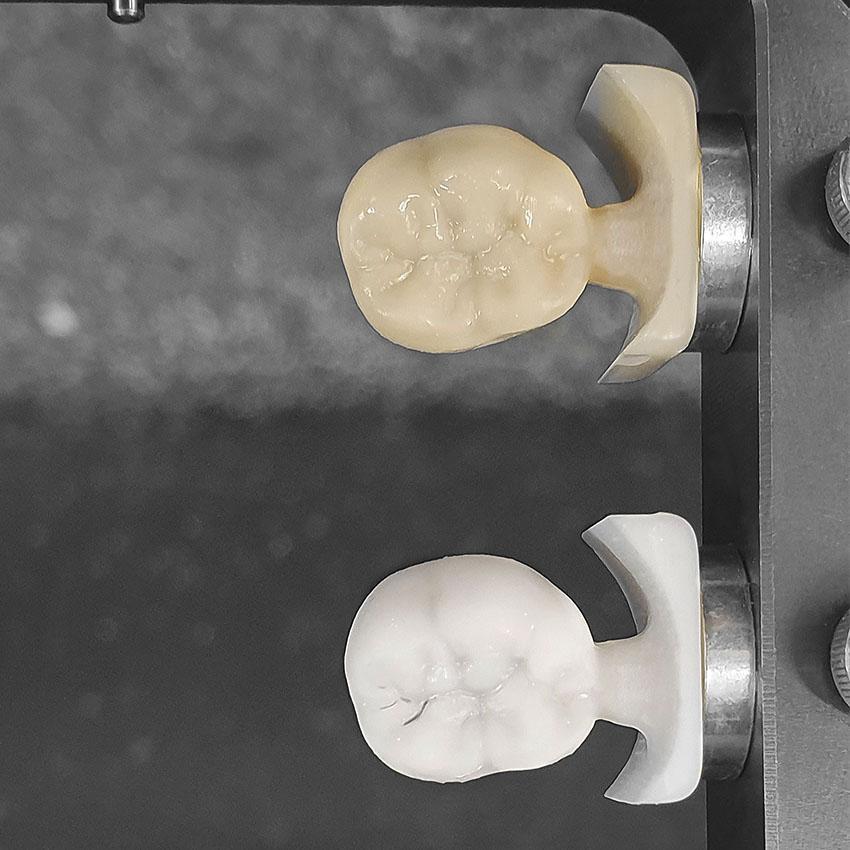

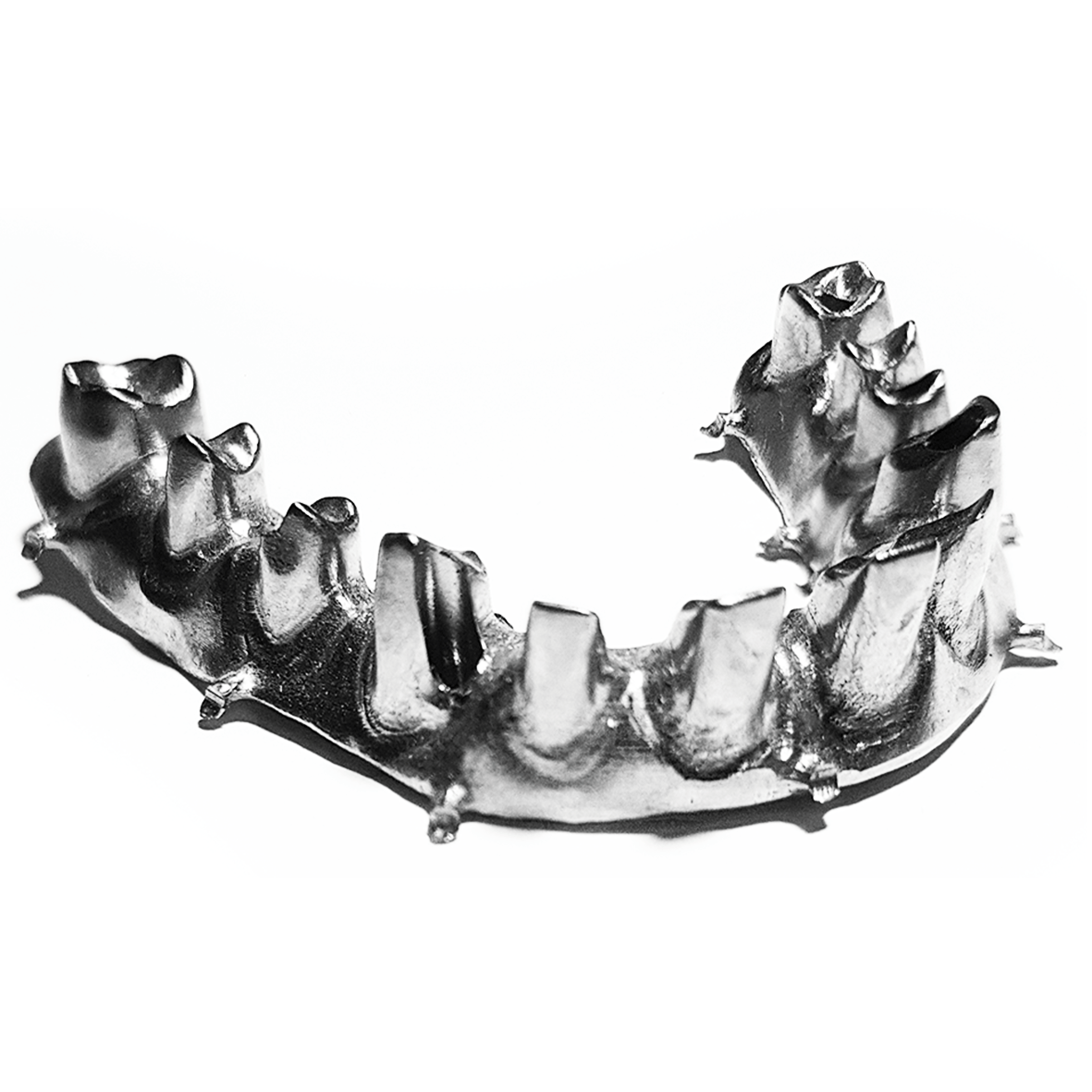

Copings, crowns, Inlay, Onlay,

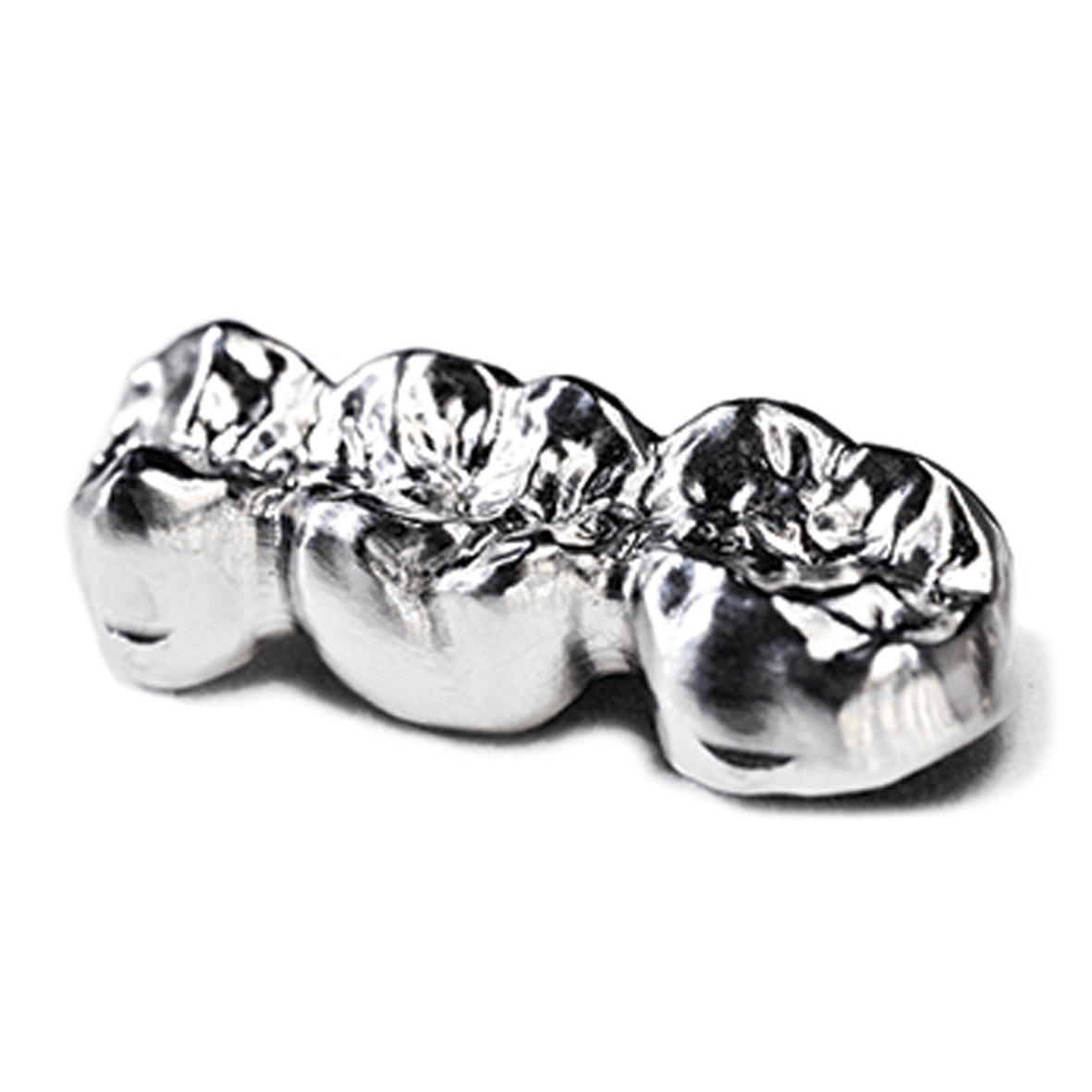

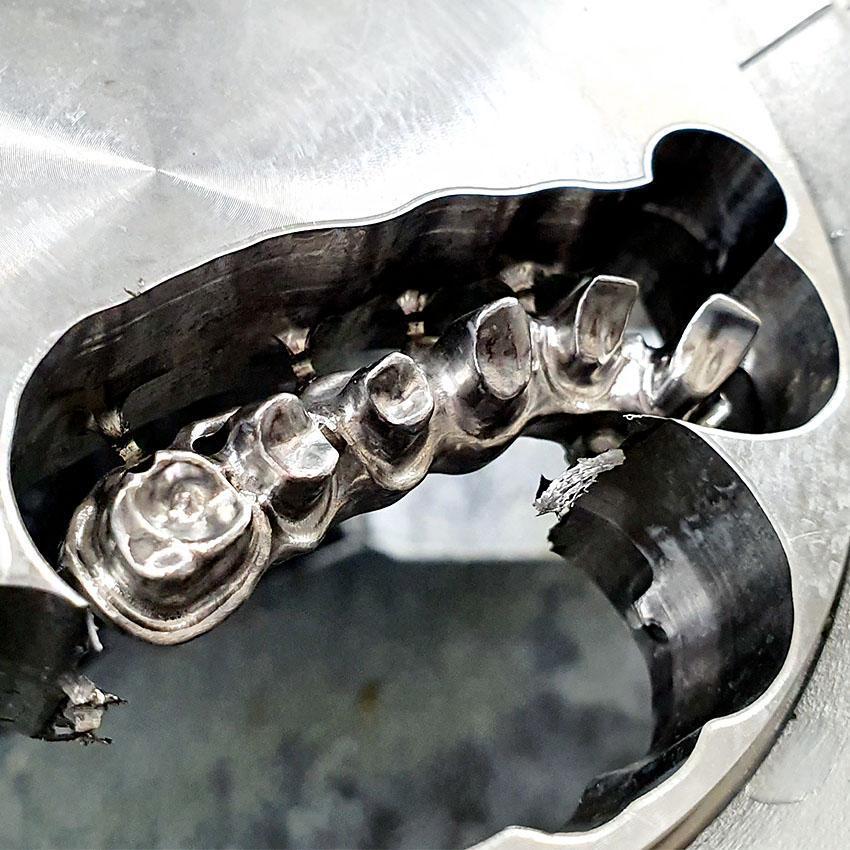

Bridges up to 3-14 units,

Telescopes,

Therapeutic splints (occlusal splints),

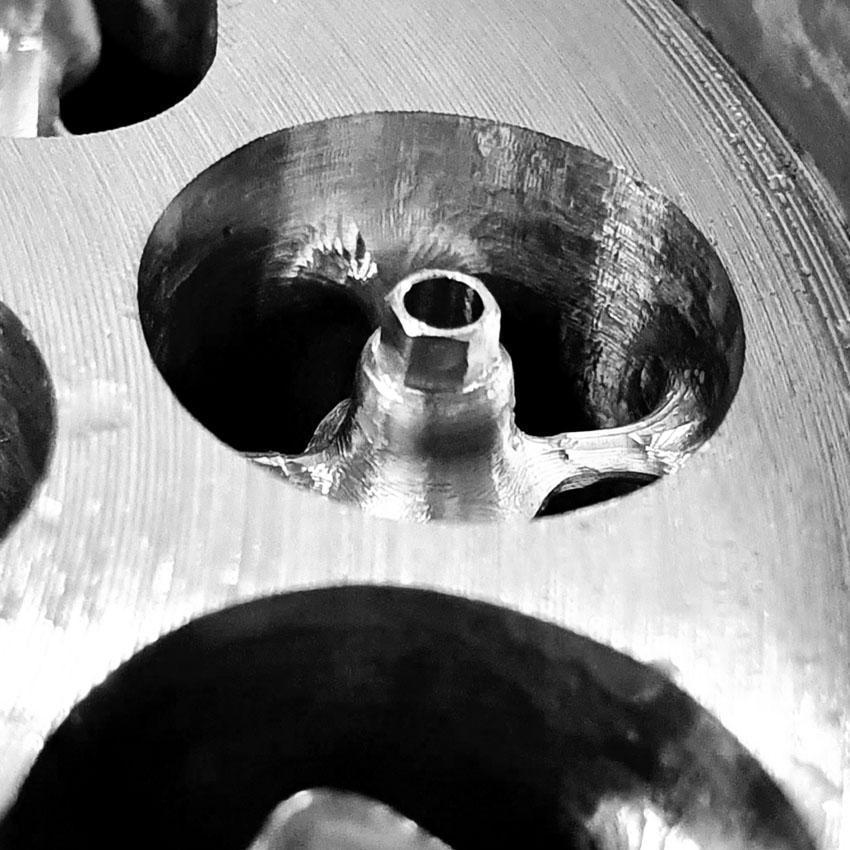

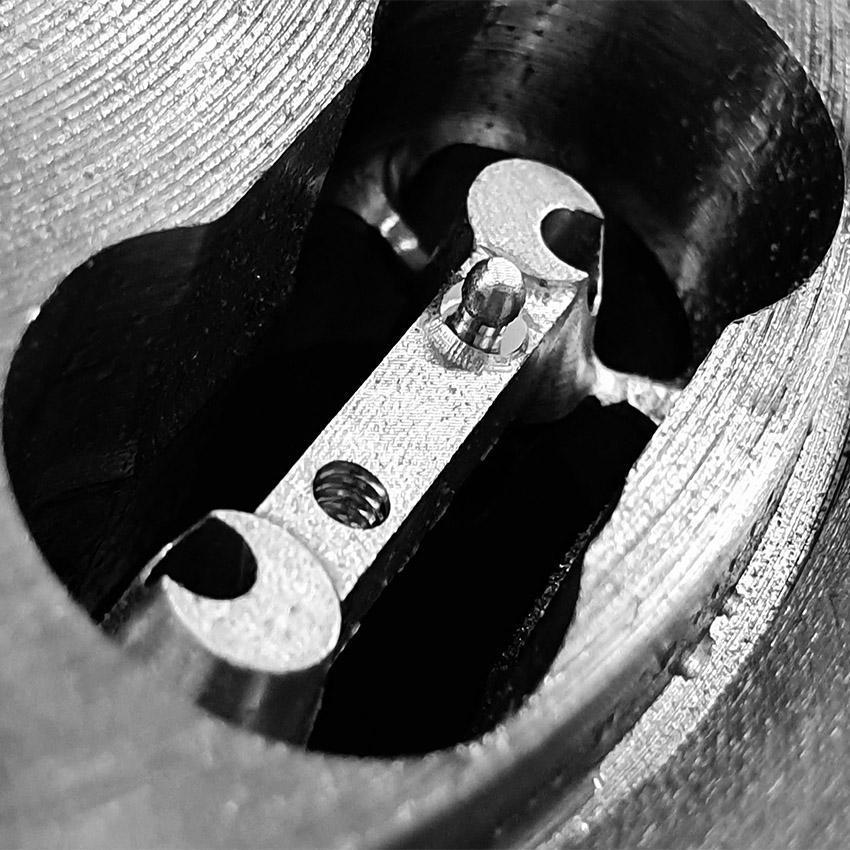

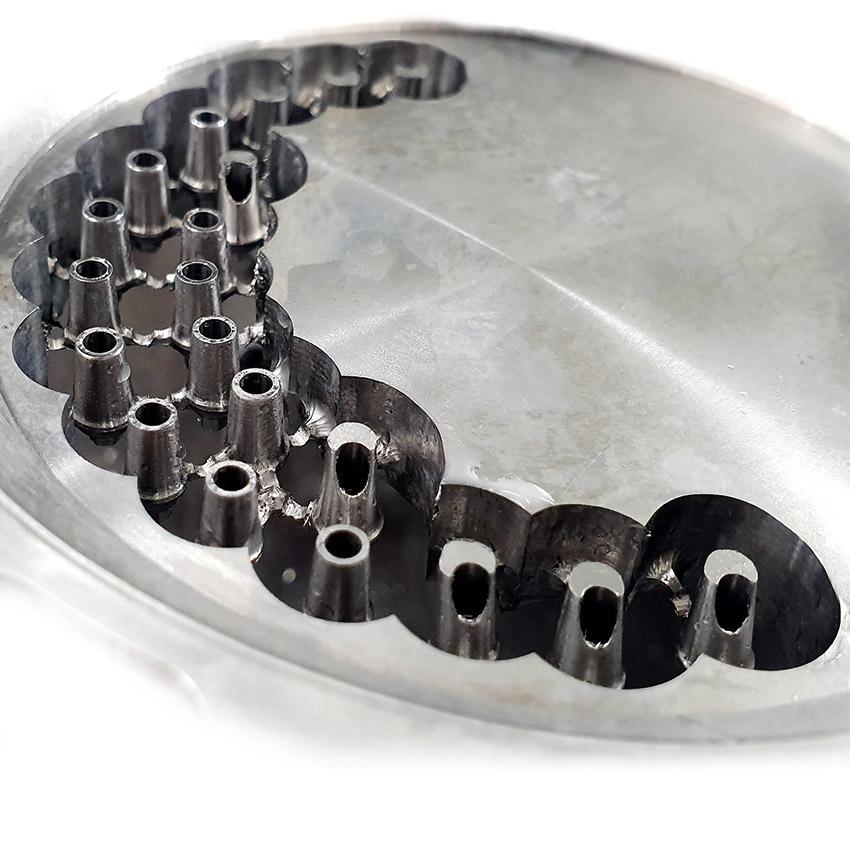

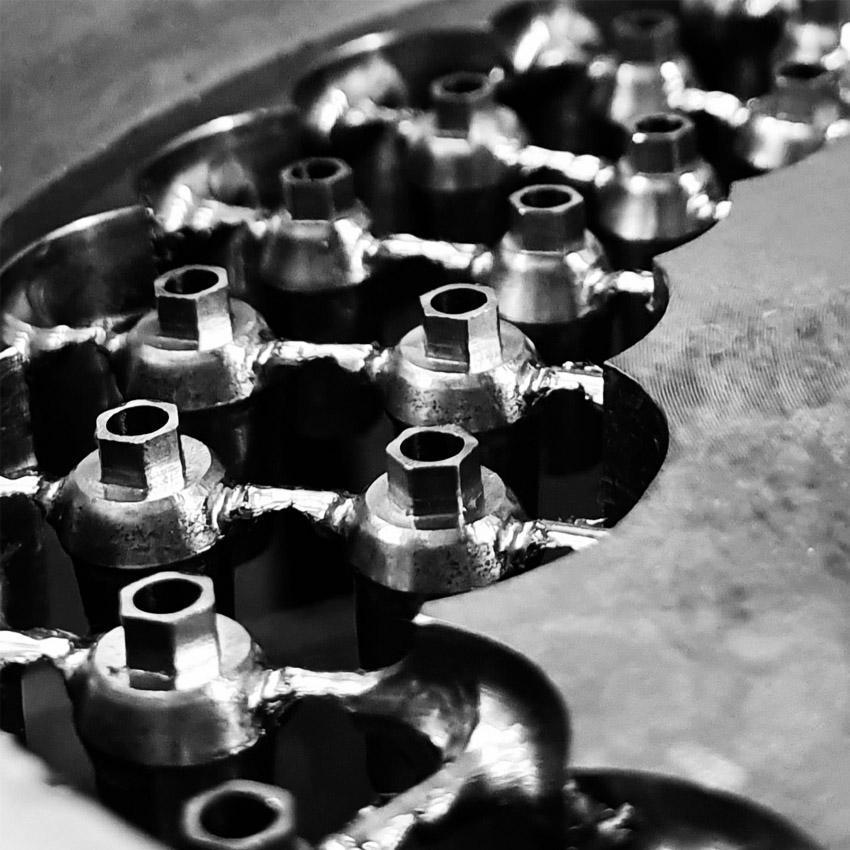

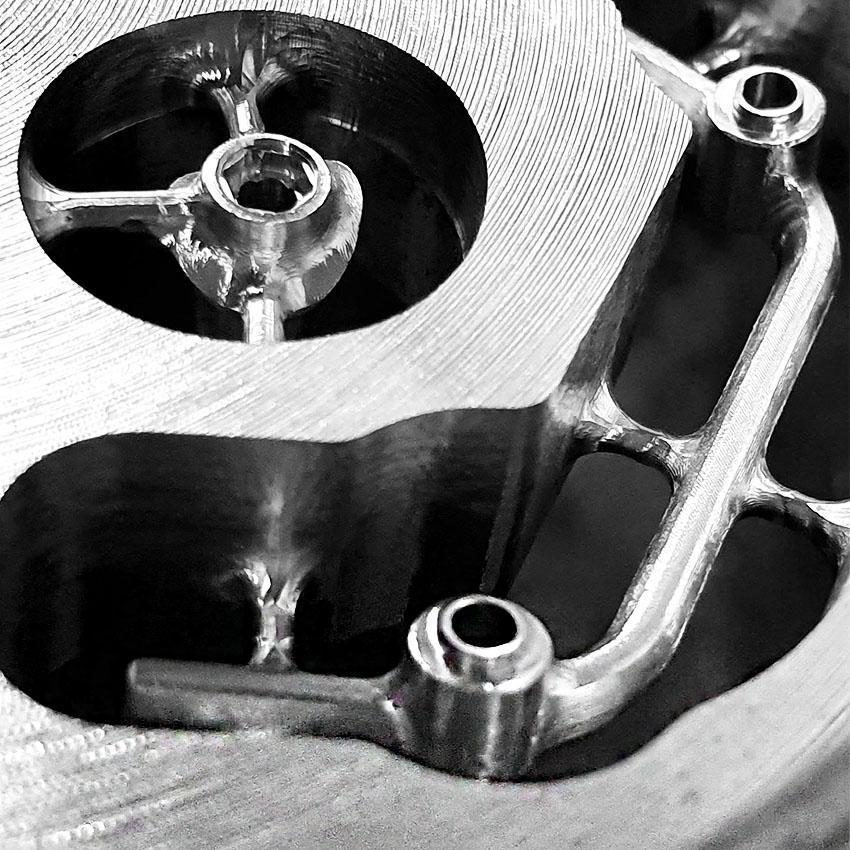

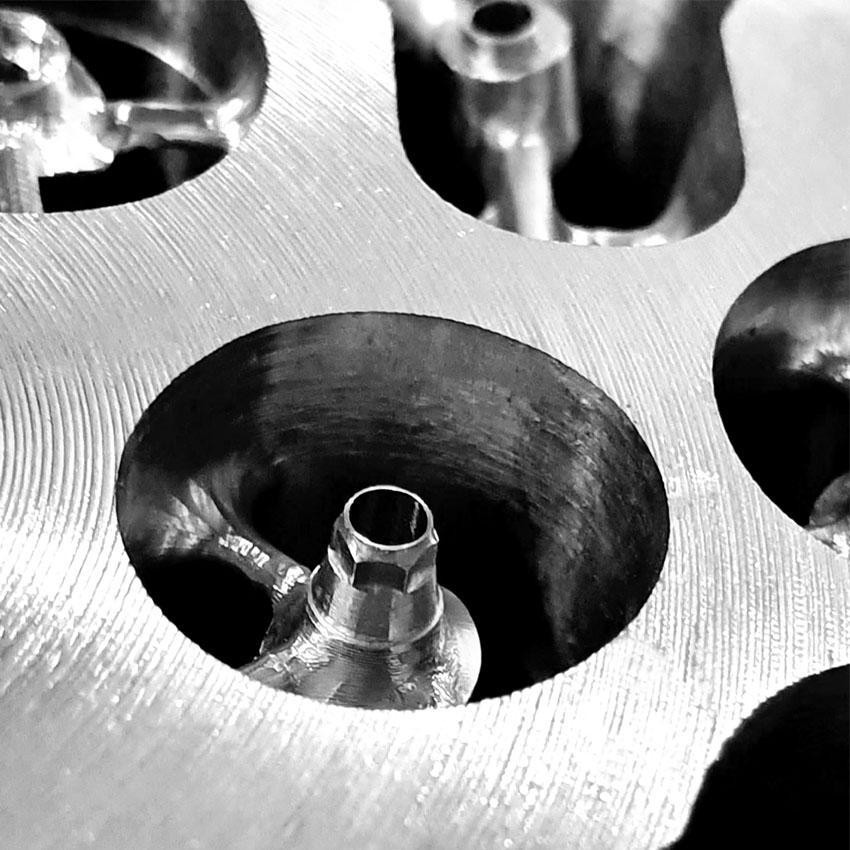

Titanium-based abutments,

Prefabricated abutments made of Ti/CoCr,

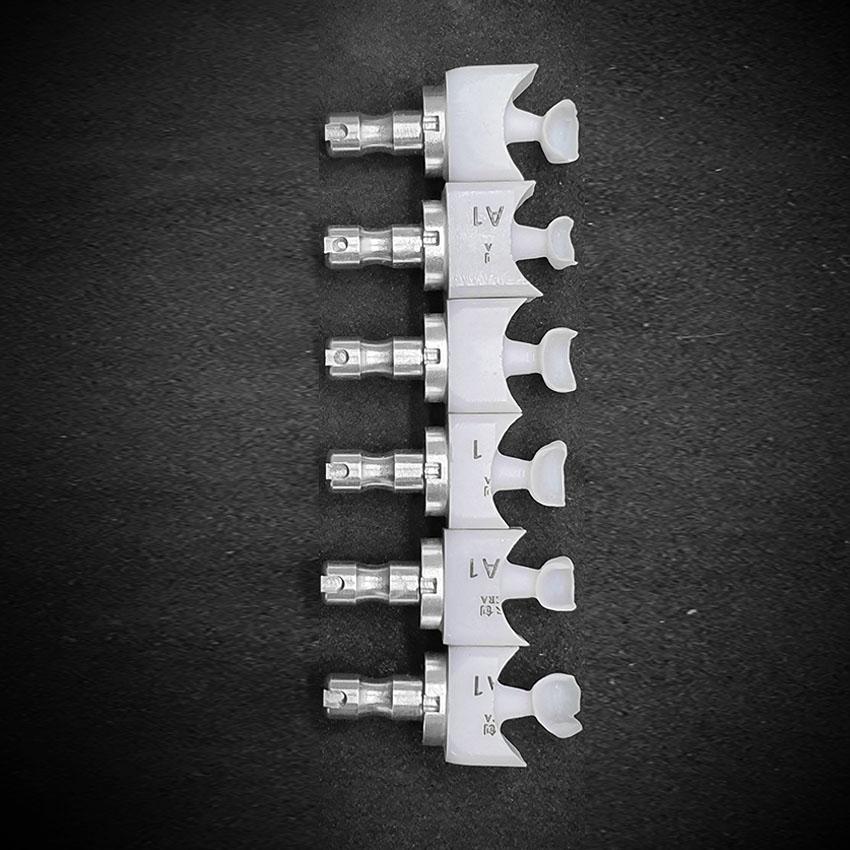

One piece abutments (Zr, Plastics),

One piece abutments (CoCr, titanium),

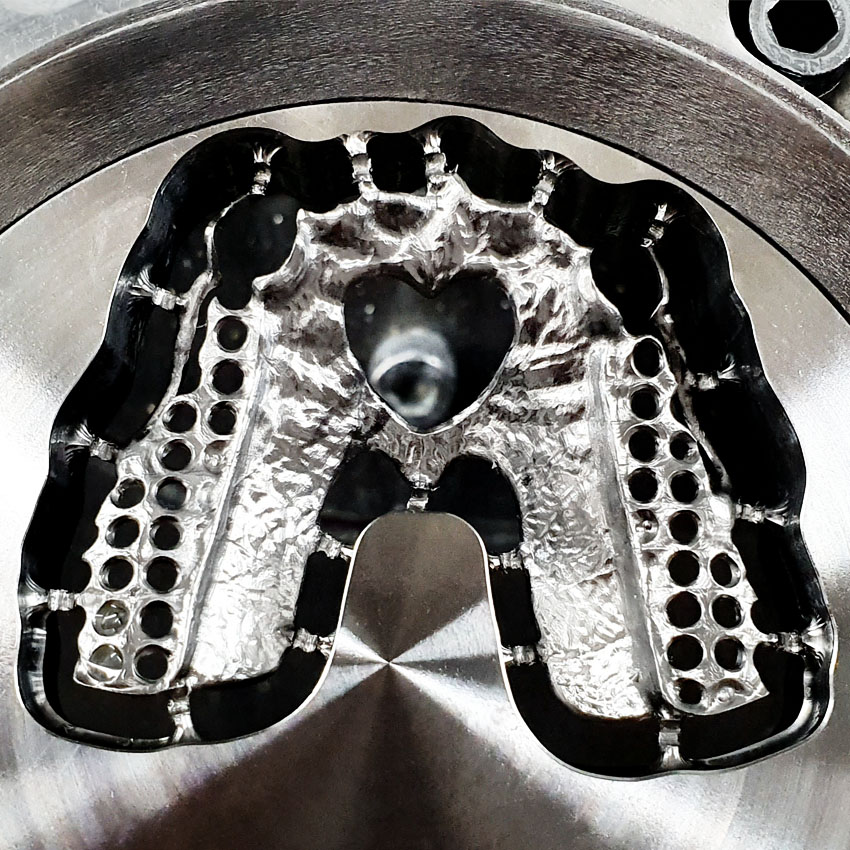

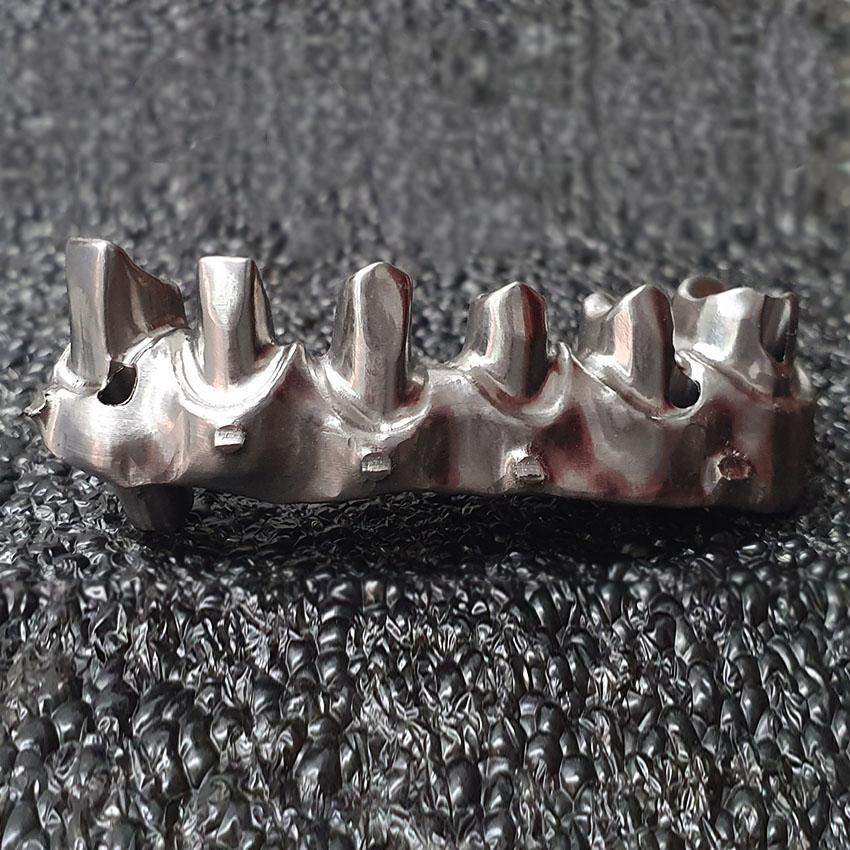

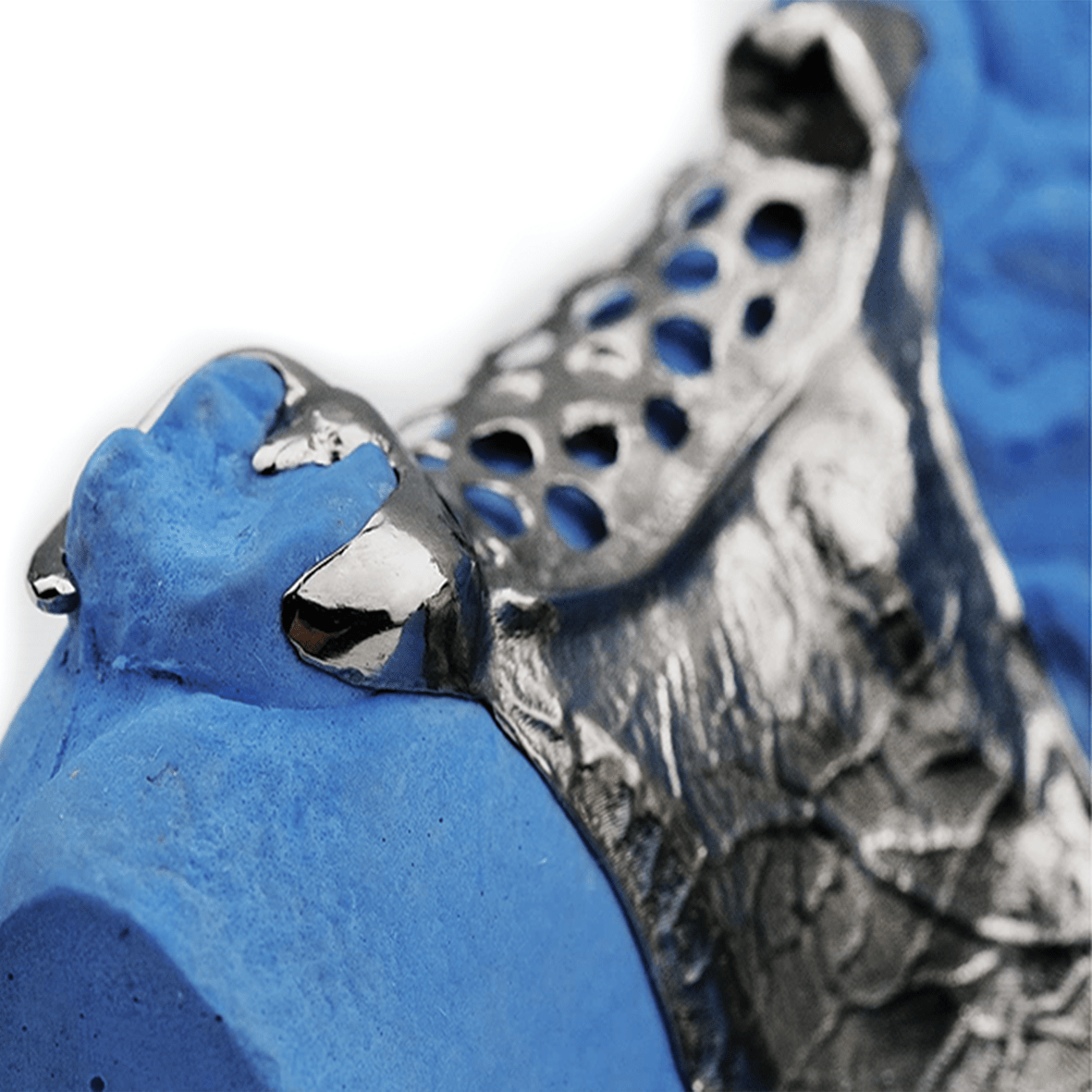

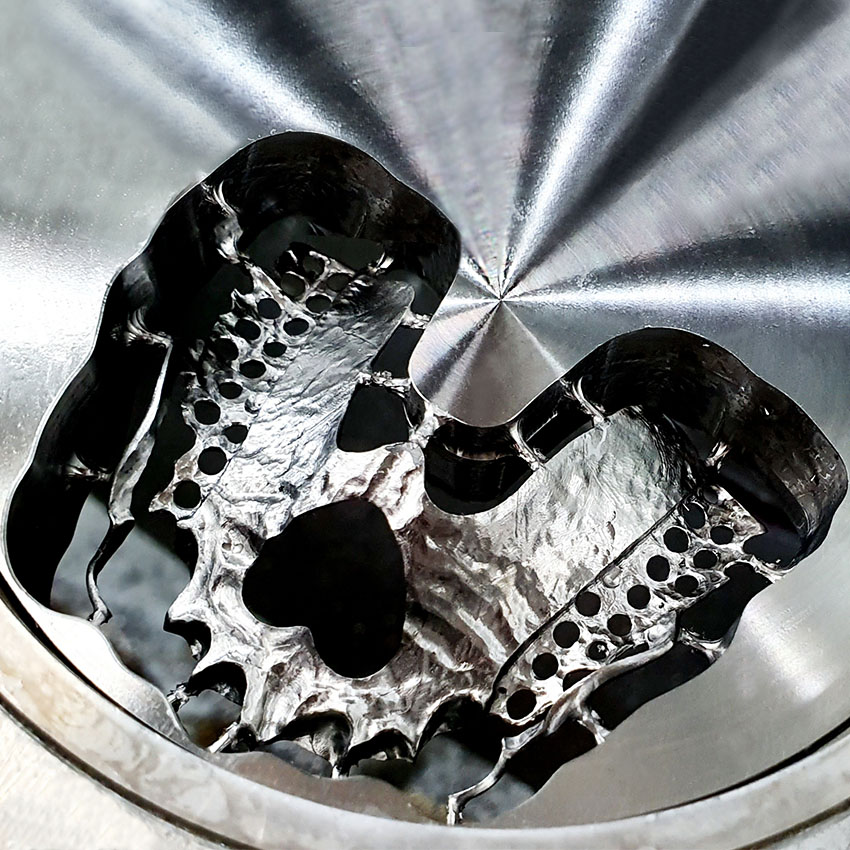

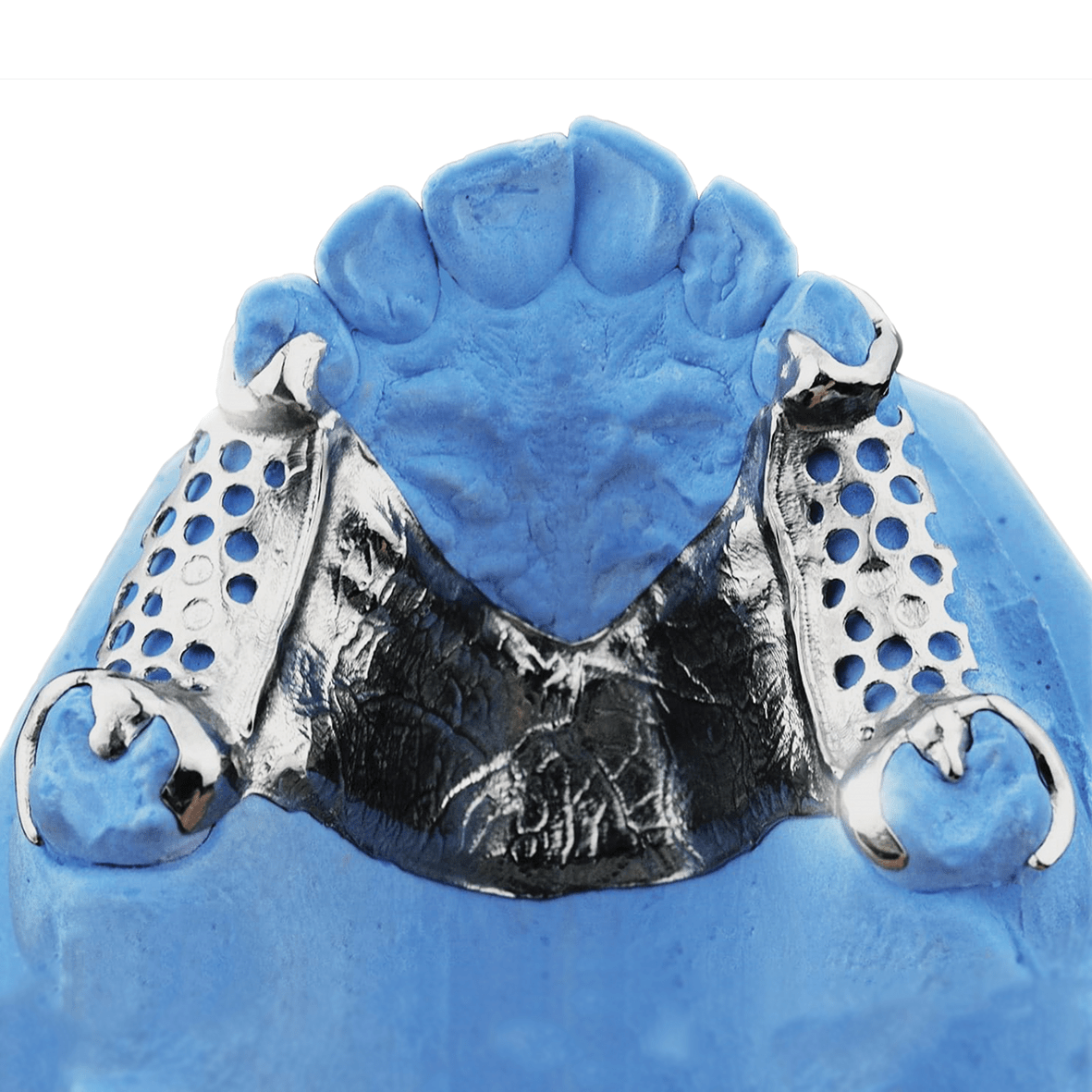

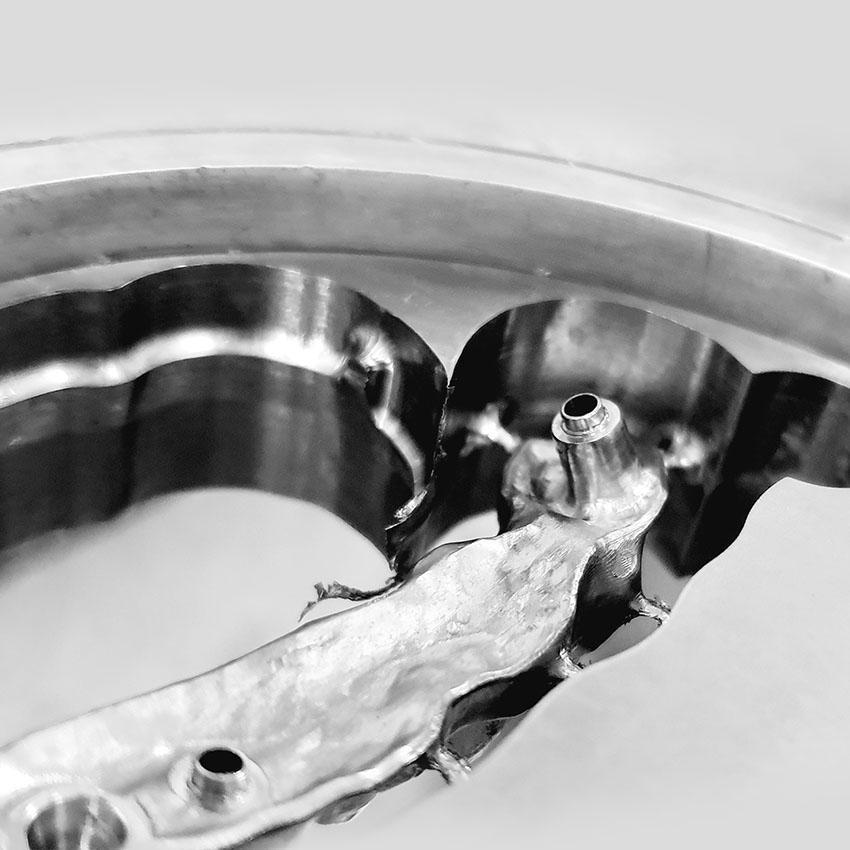

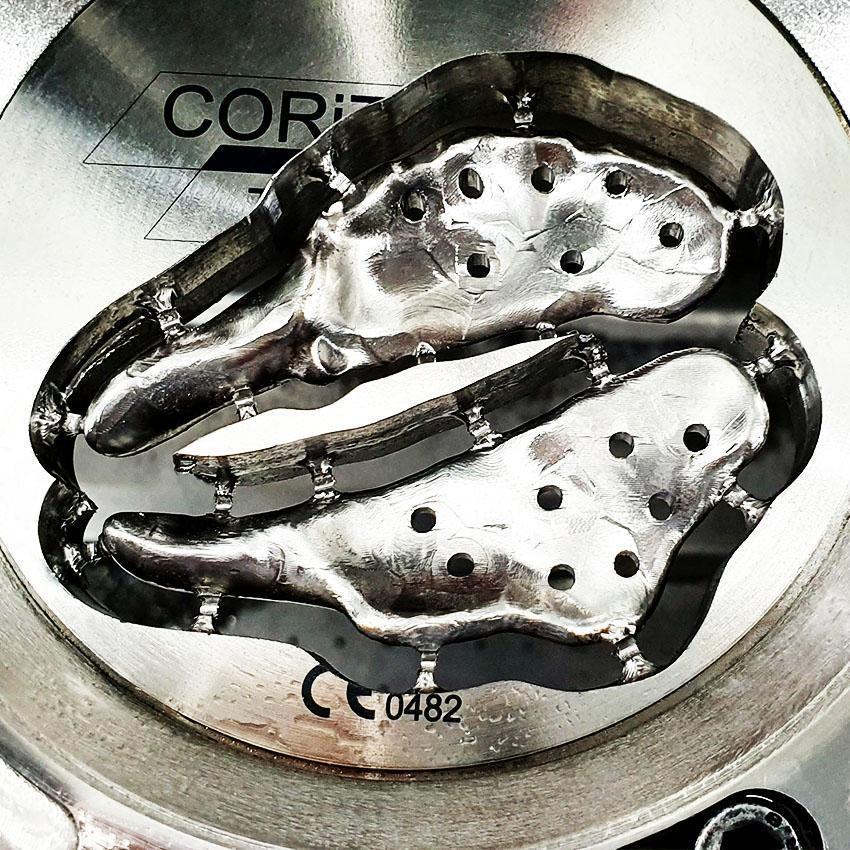

Bar constructions,

One-piece abutment / bridges on implants
