Desktop

Solution

Dry
Milling
Temperature Control
6mm 8Tool Magazine

CAD/CAM Blocks

Touch Screen

Blank processing

5th Axis

ED5Xz

HIGHLIGHTS

3
AUTOMATIC TOOL CHANGE

8 tool magazine
6 mm Max Ø

Untitled-9
HYBRID STEEL-ALUMINUM

Optimum rigidity
with minimum noise and vibrations

High quality comp. Icon
HIGH-QUALITY COMPONENTS

Leading linear and
bearing components

2
5 AXLE SIMULTANEOUS
MACHINING

High-resolution
systems in all axes

Water cooled Icon
WATER
COOLED SPINDLE

1.8 kW 60k.RPM high speed spindle
for precise results with optimum finish

24-7 Icon
DURABLE
AROUND THE CLOCK

Non-stop productivity
without compromising quality

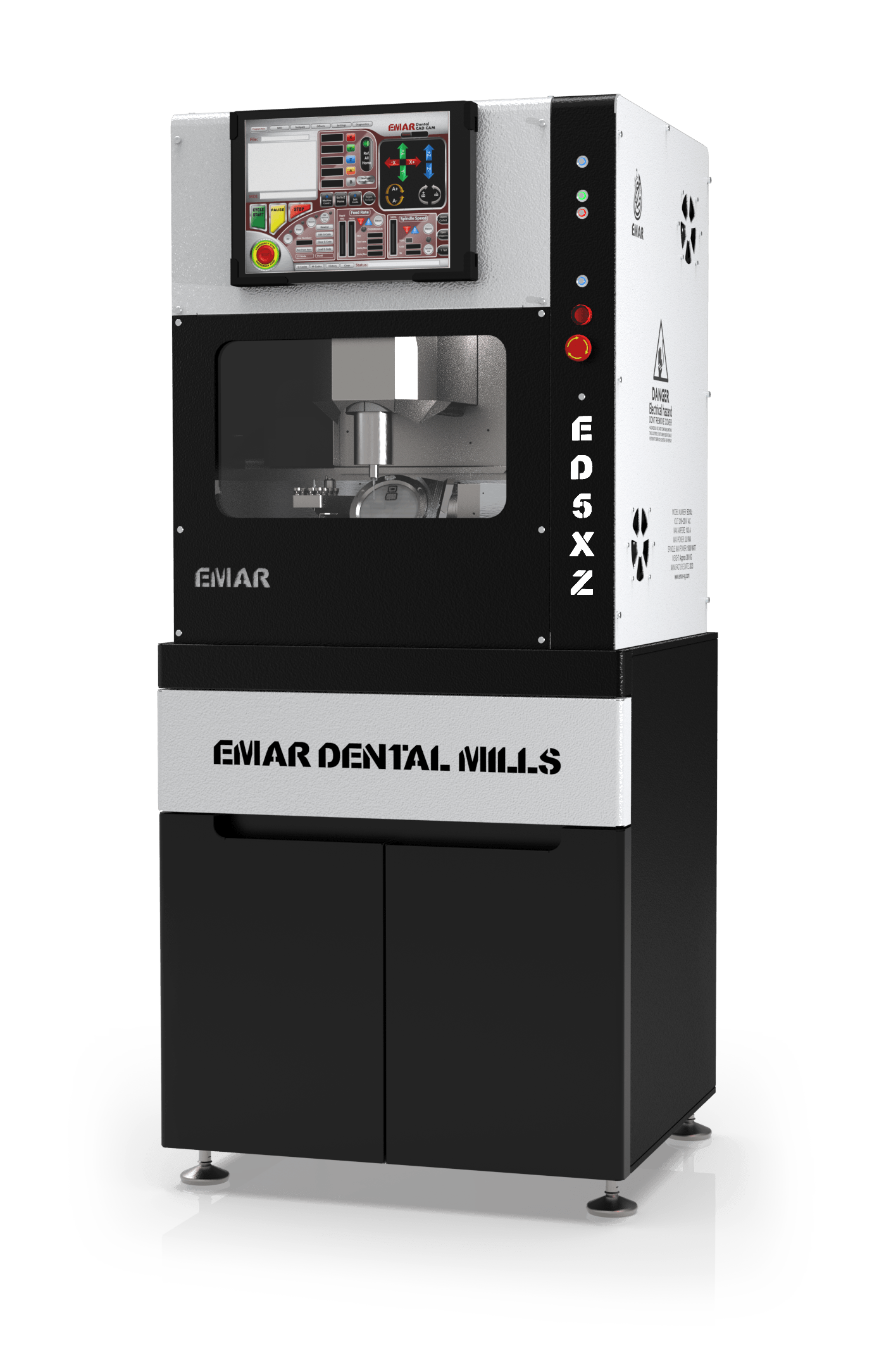

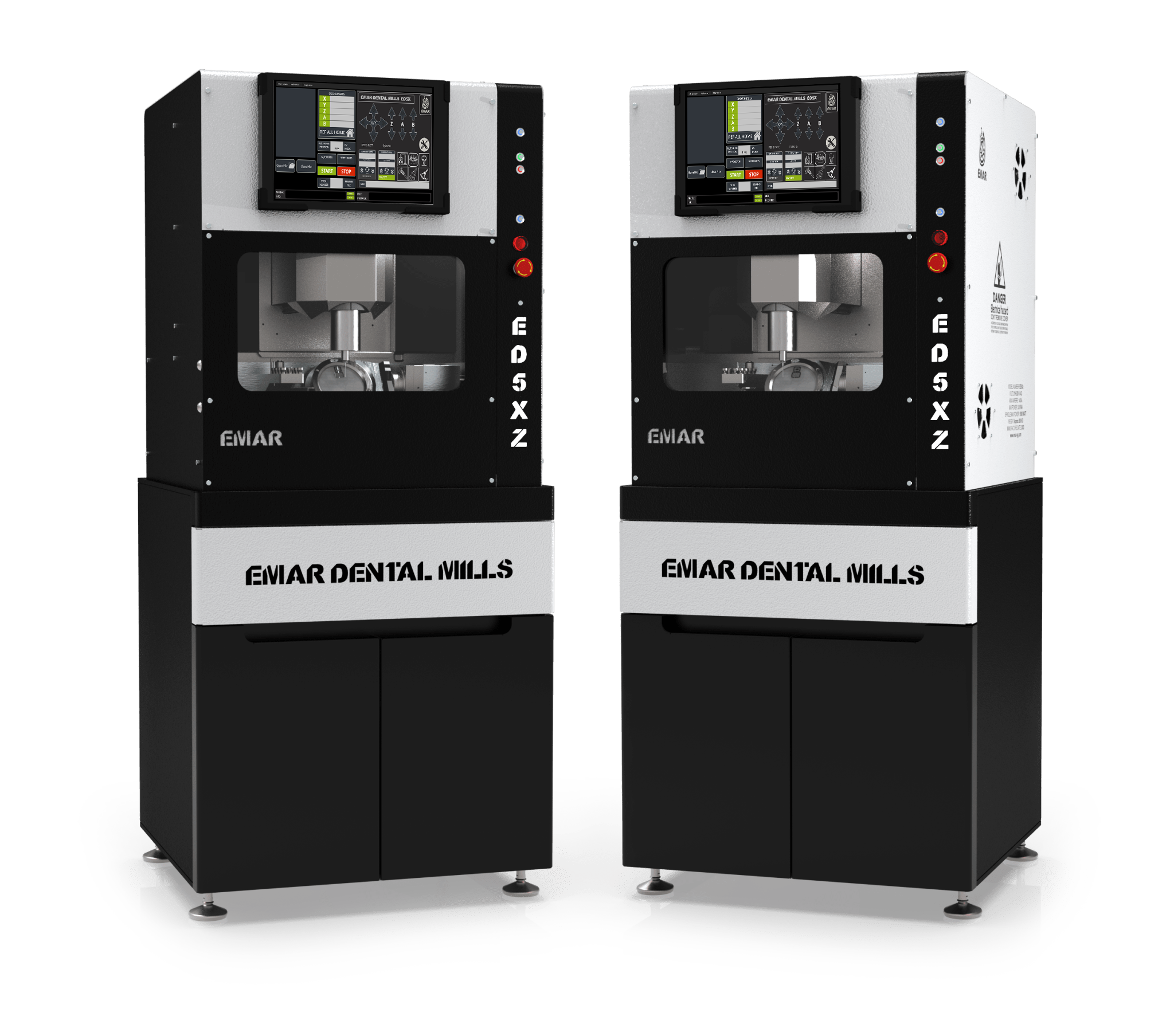

ED5Xz

DENTAL MILLS



EMAR dental mills are equipped with high-quality industrial milling technologies, such as hybrid steel & aluminum chassis, stainless steel enclosures, ground ball screw and high accuracy stepper motors in all axes,  and high  speed main spindles.

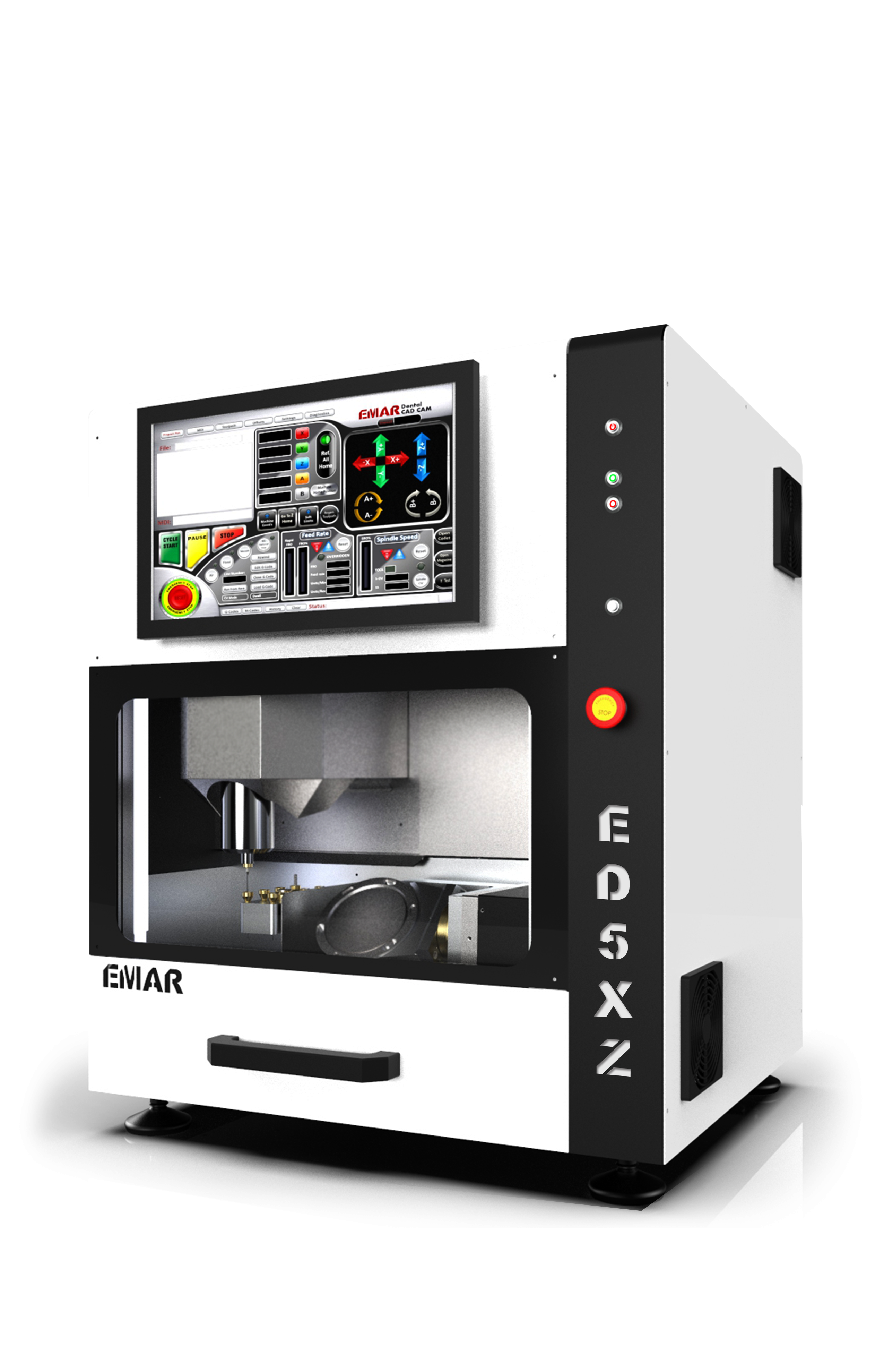

ED5Xz small size makes it the optimum solution for small dental labs. Its extremely stable design of the steel base, along with high dynamic aerospace aluminum grade alloy parts, which provide the vibration damping and stability needed for a desktop solution. This machine small size and low cost of ownership makes it unmatched by any other desktop dental mill in the market.

The ED5Xz components are designed for precision, longevity and with the latest technological standards, as it includes a fully integrated automatic 8–tool change system, which enables you to operate the machine system at full capacity around the clock,  while maintaining consistent high precision. And its 5-axis simultaneous technology can produce complex dentures with diverging stumps and undercut areas without further rework, while offering high equipment flexibility. ED5Xz is unmatched when it comes to price to performance ratio.

ED5Xz

SPECIFICATIONS

Dimensions (WxDxH)

700 x 770 x 1750 mm

Number of axes

5

Number of tools

11 tool magazine

Spindle type

ATC water cooled

Pmax ~ speed Max.

1.8 kW 60,000 rpm

Guides and bearings

HIWIN

Material change

Manual single blank holder

Suitable for

Dry/Wet machining

Clamping system

Block processing

(Standard 98 mm)

(CAD/CAM blocks)

Chassis

Hybrid steel & aluminum

Motors and drivers

Stepper motors system

Control

Mach-3

Weight

250kg

EMAR reserves the right to make changes to technical specs without prior notice

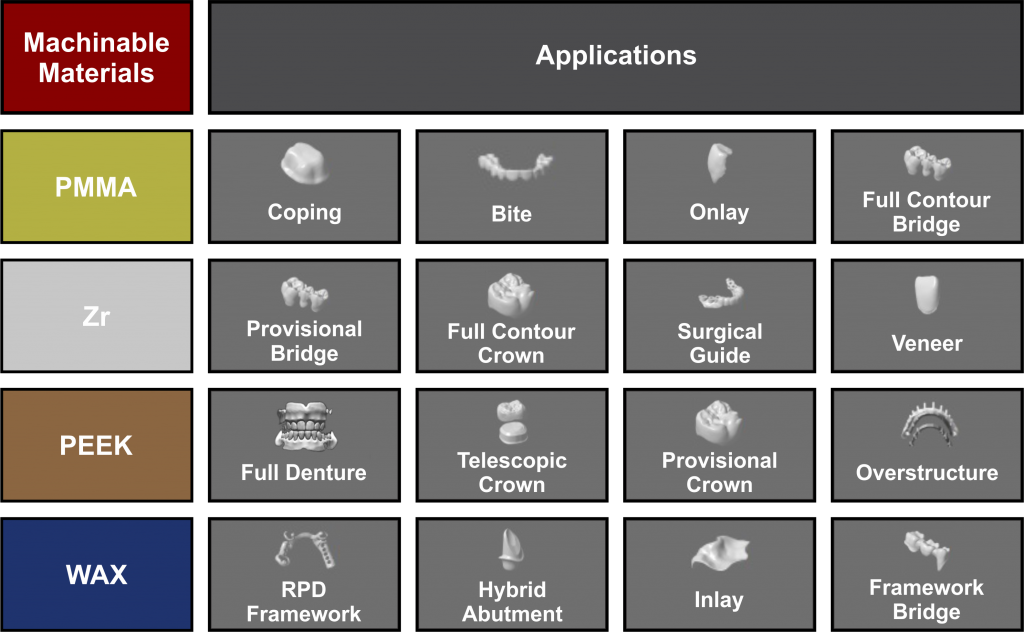

Machinable materials

Pmma, Peek, Plastics, Composites,

Wax,  Zirconia, Sintered metal,

Glass Ceramics.

Suitable for

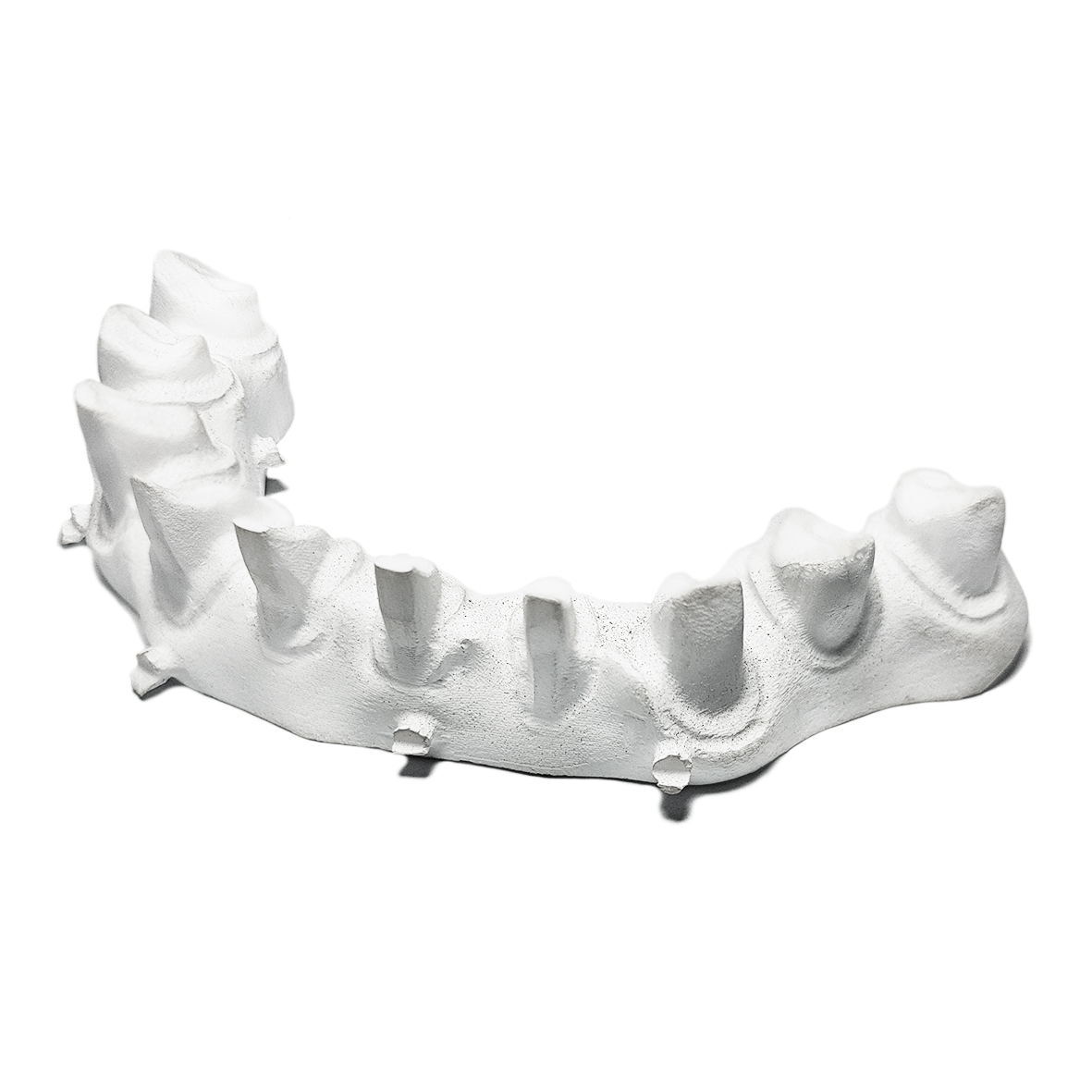

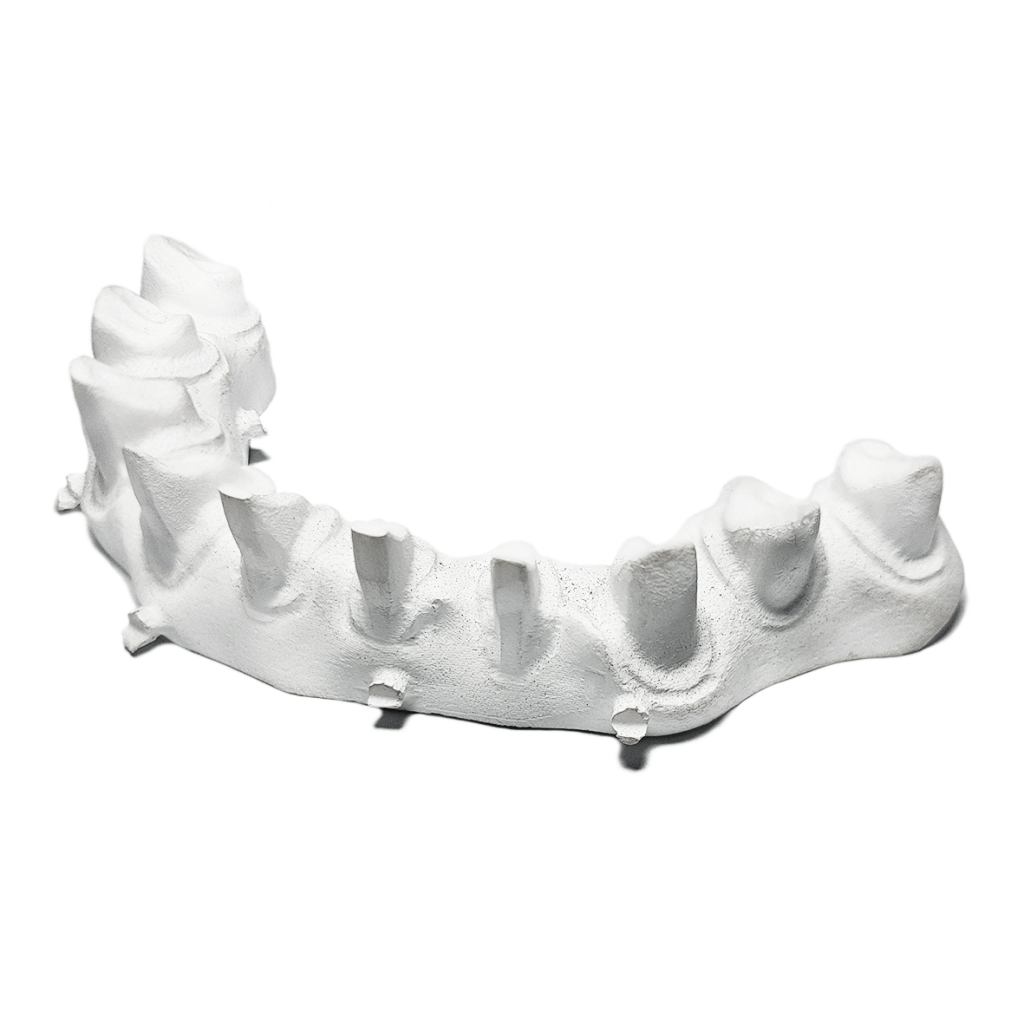

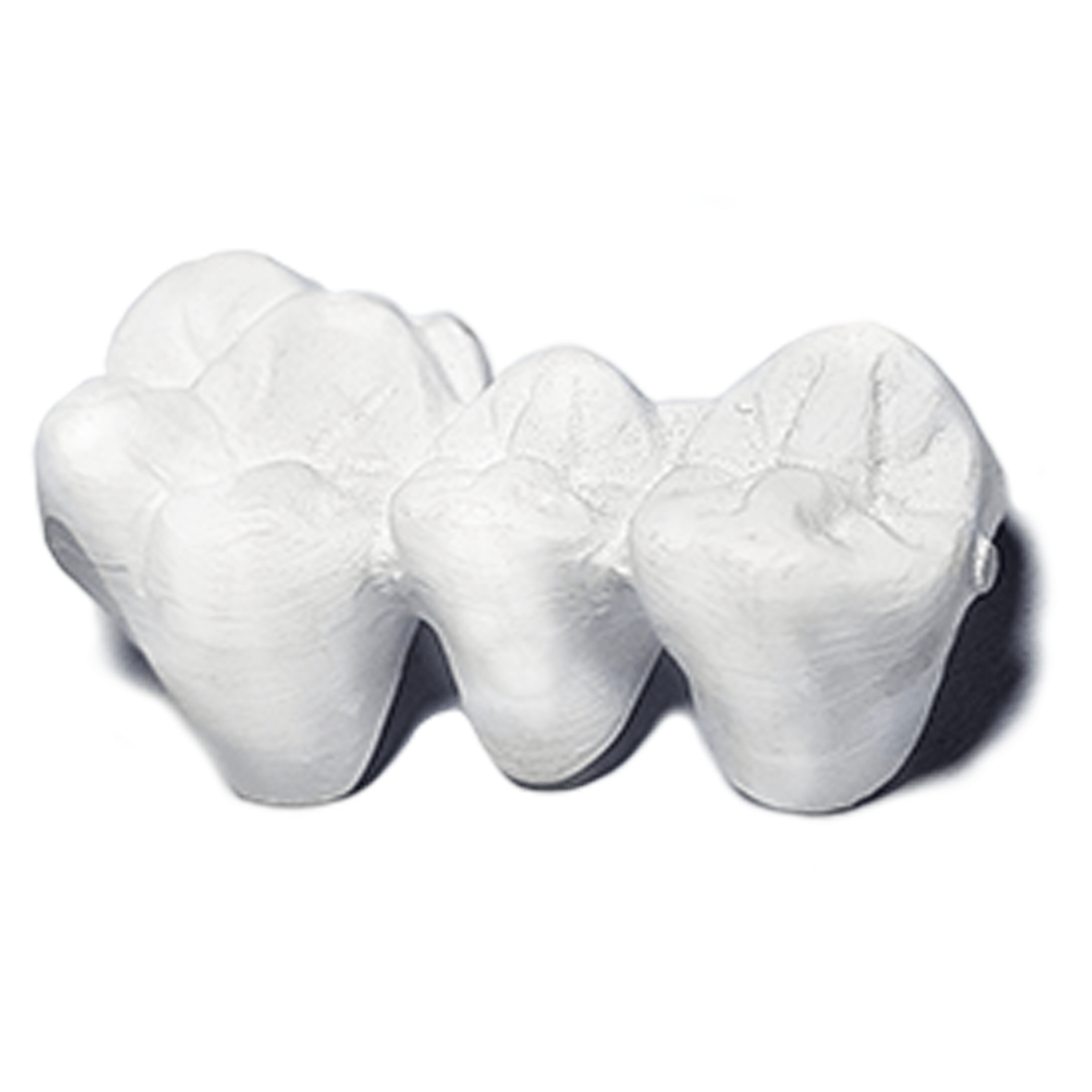

Copings, crowns, Inlay, Onlay,

Bridges up to 3-14 units,

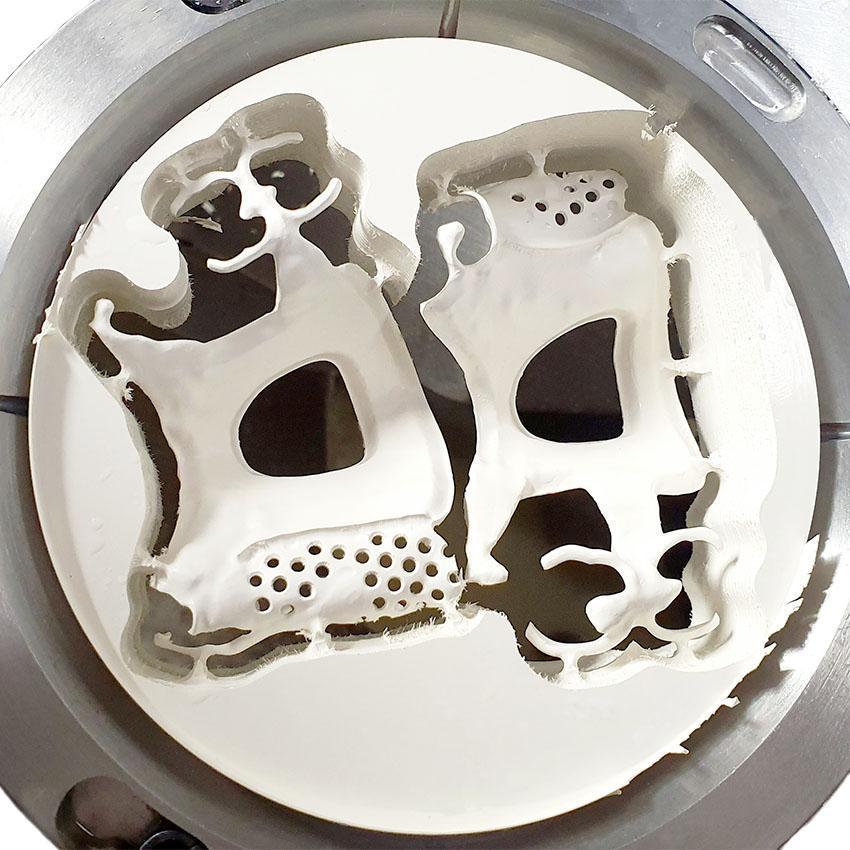

Therapeutic splints (occlusal splints),

Titanium-based abutments,

One piece abutments (Zr, Plastics)
