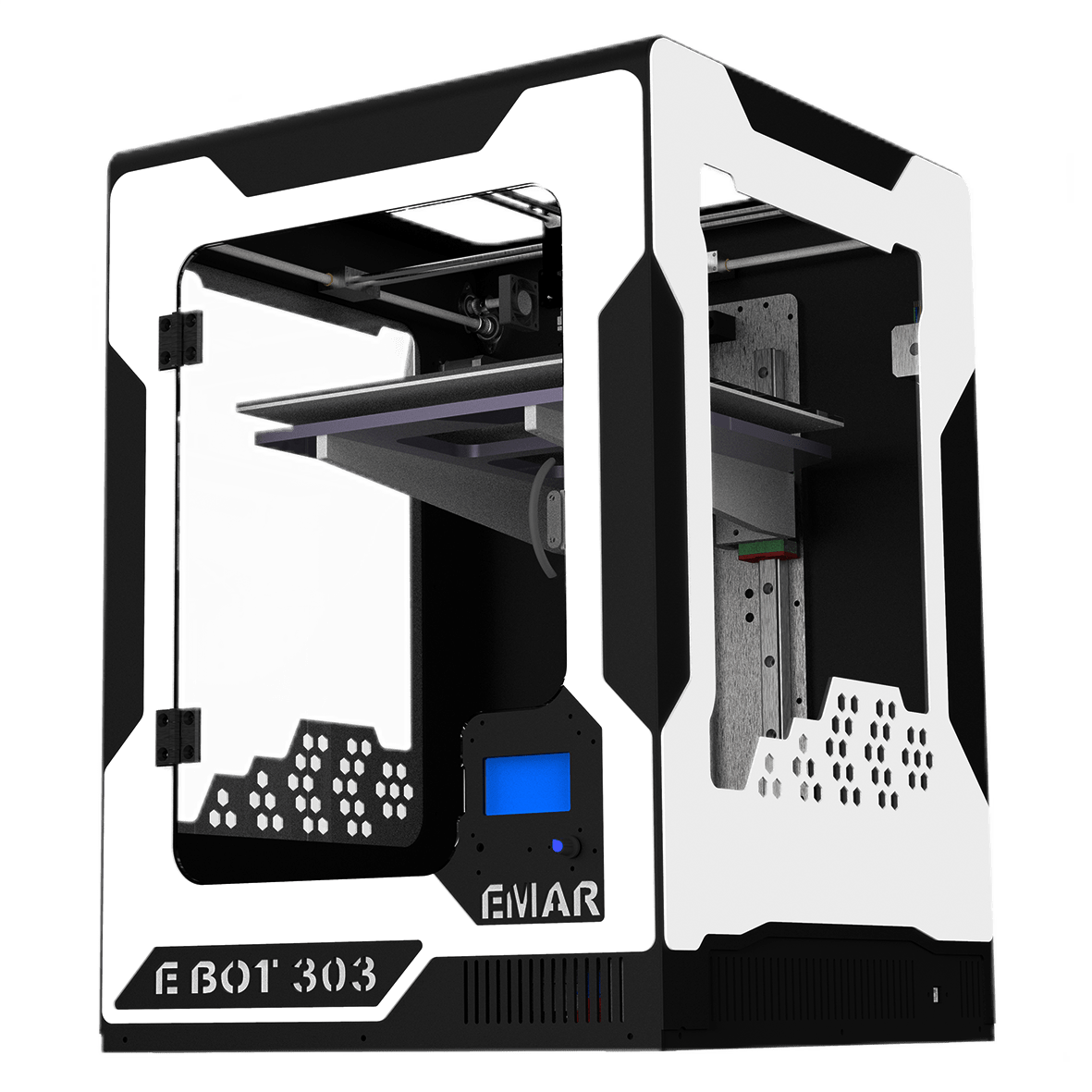

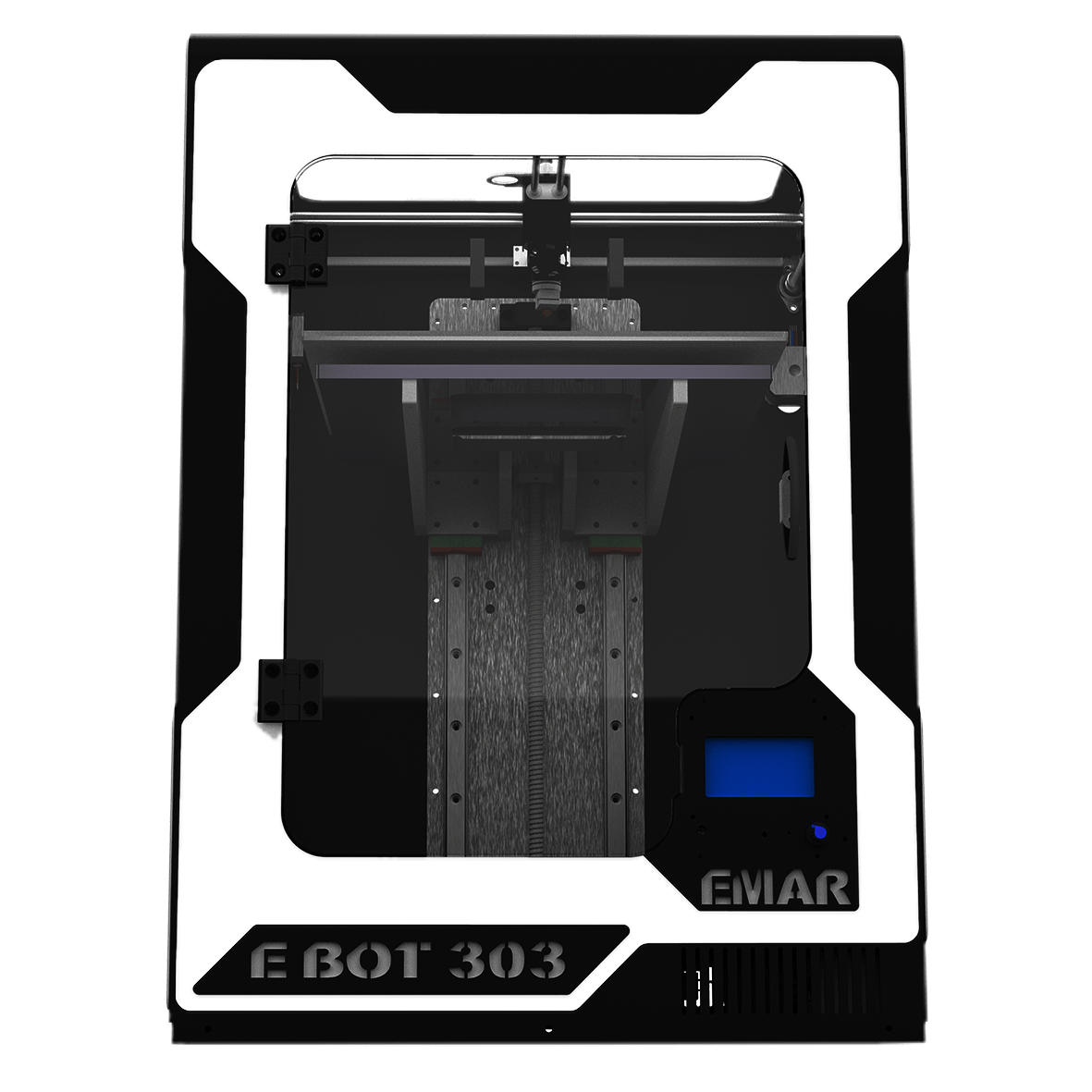

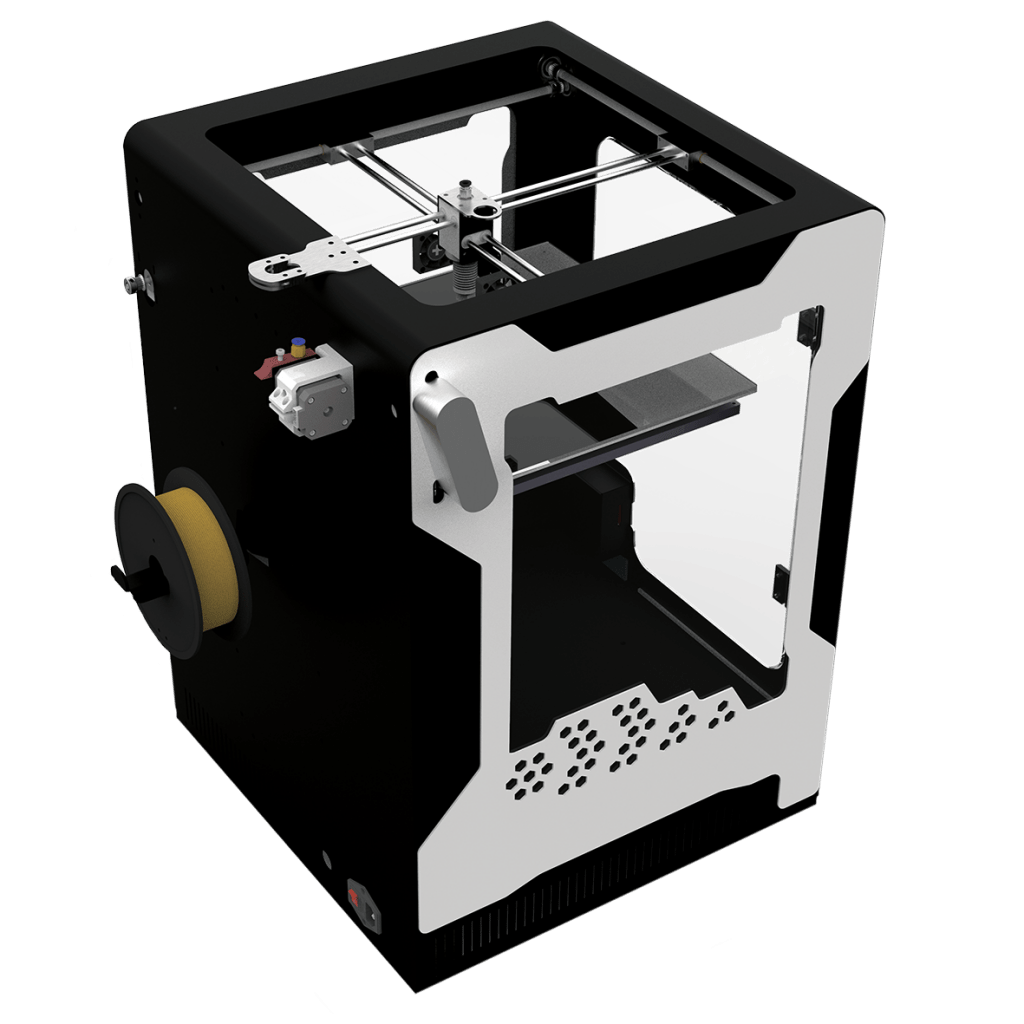

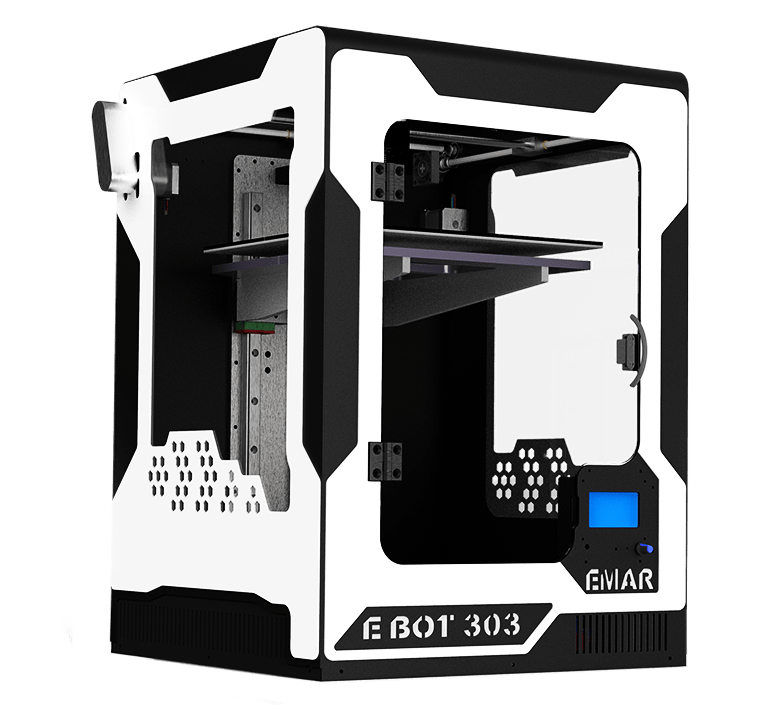

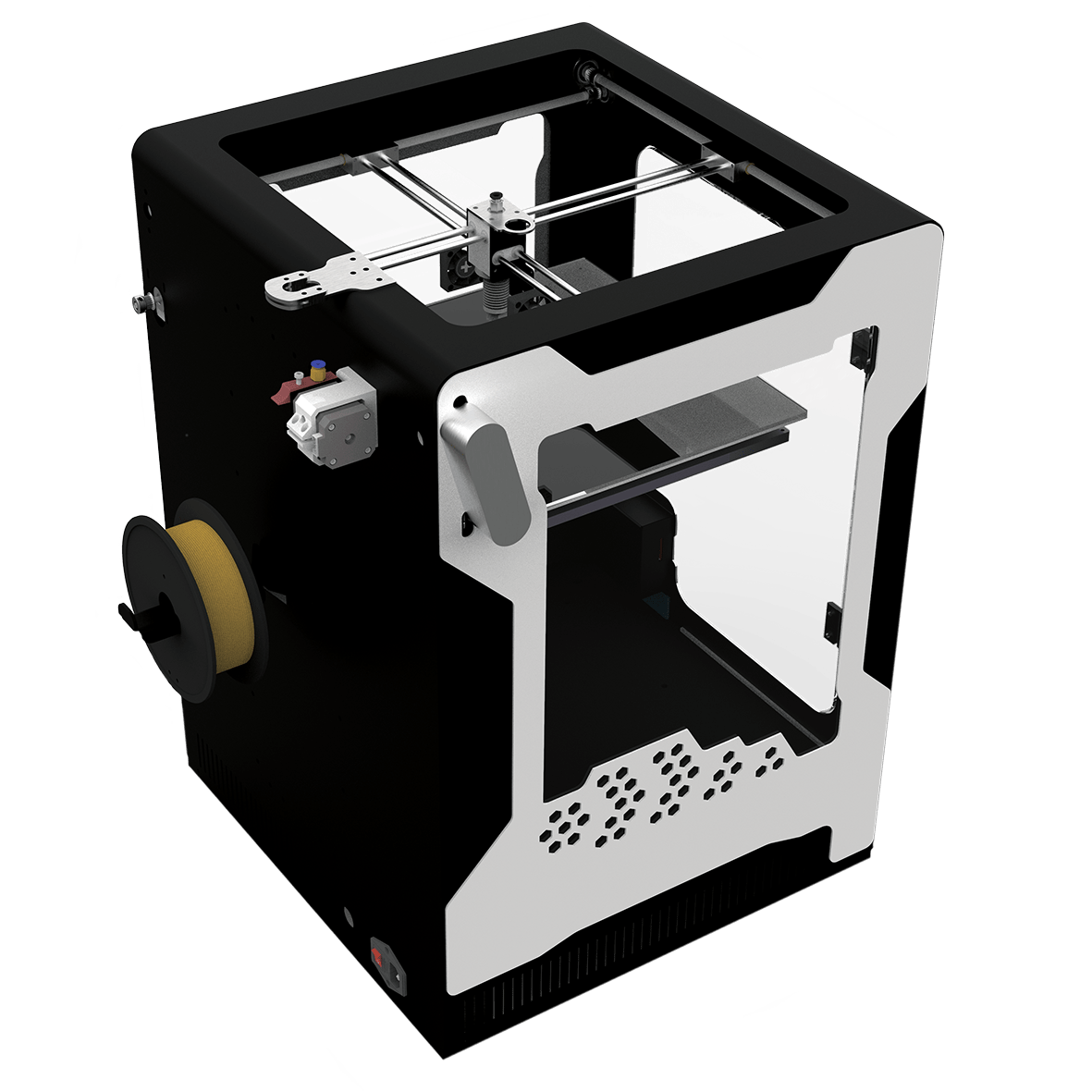

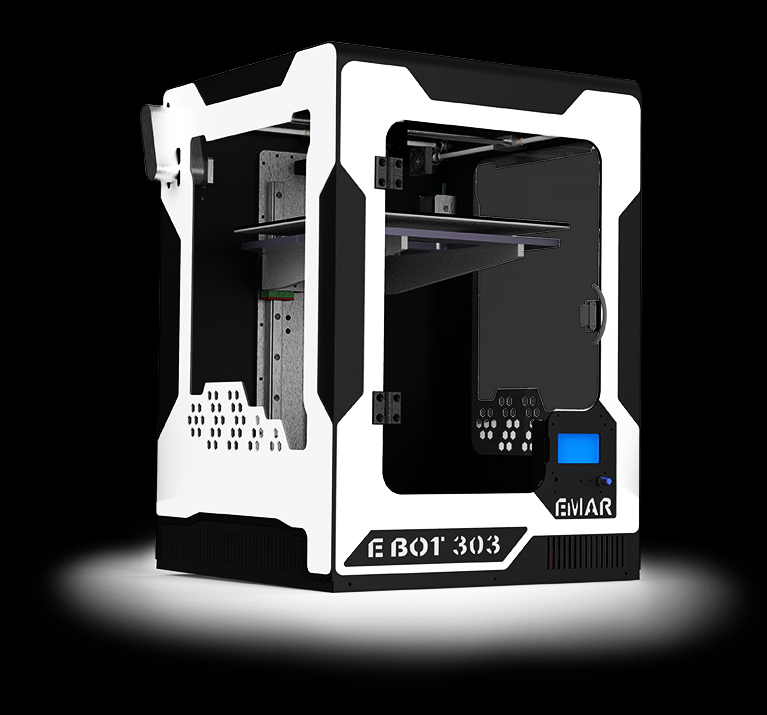

E-BOT 303
INDUSTRIAL 3D PRINTER
E-BOT 303
HIGHLIGHTS
ADVANCED EXTRUDER
Top-notch
geometric design
HEATED BED
Higher adhesiveness
for more secure printing
LARGE WORK-SPACE
Large models
printing capabilities
TMC 256 BIT
MICRO STEPPING DRIVERS
High resolution
printing capabilities
WIDE FILAMENT
COMPATIBILITY
Designed to support
wide range of filaments
SUPER SILENT
PRINTING
Noiseless printing
Vibrations free
E-BOT 303
A plug & play rapid prototyping machine ready for high quality 3D printing. Being affordable, reliable, and user-friendly, this machine delivers consistent results – suitable for a wide range of applications. It features swappable nozzles, heated glass build plate, and open filament system.
Designed for average sized industrial-grade results, E-BOT 303 allows printing big models in one go without breaking them down into separate parts that need to be assembled. That’s particularly important when durability is of the essence as joints are usually the weakest spots in the structure. E-BOT 303 cuts assembly time while making prints more durable with an increased structural strength.
E-BOT 303
SPECIFICATIONS
| Dimensions (W x D x H) | 500x500x700 mm | Technology | LPD (Layer Plastic Deposition) | |
| Build volume | 300x300x300 mm | Layer resolution | 90-290 microns | |
| Material container | Spool | Minimal wall thickness | 300 microns (for 0.3 mm nozzle) | |
| Material diameter | 1.75 mm | Platform leveling | Manual bed leveling | |
| Nozzle diameter | 0.4 mm | Maximum printing temperature | 250° C | |
| Support: | Mechanically removed | Maximum platform temperature | 105° C | |
| same material as model | Max. / Avg. power consumption | 650 / 300 WATT | ||
| Extruder cooling | Radial fan | Chassis | Built-up section | |
| Hot-end | Single | Weight | 55 kg | |
| Platform | Heated aluminum bed + glass | Guides and bearings | HIWIN/TPI | |
| Material end-stop | Mechanical | Motors and drivers: | polyphaser stepper motors | |
| Connectivity | SD Card, USB | Lead Shine – TMC 256 bit | ||
| Supported input file types | .stl | Printable materials | PETG, PLA, ABS, | |
| Software | CURA | Applications: | Prototyping, Dental, Architecture, | |
| Operating systems: | Mac OS up to Mojave version | Mechanical, robotics, decorative, | ||
| Windows 7 & newer versions | and art-work applications |
