ECNC 6050 CM BT40
HARD-METALS MILLING MACHINE
Wet Processing
Dry
Milling
Temperature Control
12mm Max Dia
Vacuum Table
Touch Screen
4th Axis
Servo Motor Upgrade
ECNC 5030CM
HIGHLIGHTS
MACH-3 CONTROL
Mach-3 interactive
User friendly control
CAST IRON CHASSIS
Optimum rigidity
Minimum noise and vibrations
HIGH-QUALITY COMPONENTS
Leading linear and
bearing components
4 AXIS SIMULTANEOUS
MACHINING
High-precision
4-axis rotary
WATER
COOLED SPINDLE
4.0 kW 24k.RPM high speed spindle
for precise results with optimum finish
DURABLE
AROUND THE CLOCK
Non-stop productivity
without compromising quality

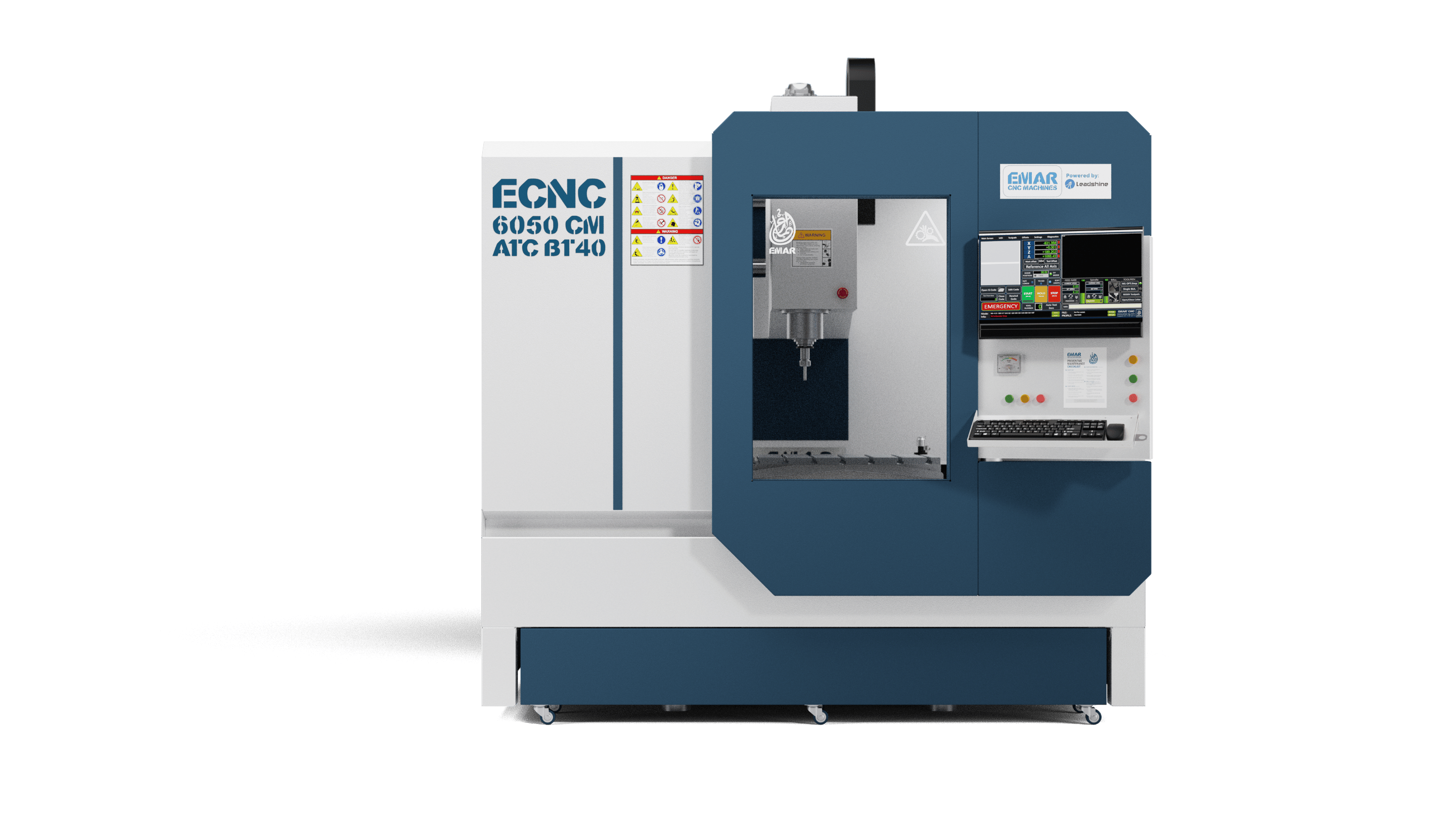

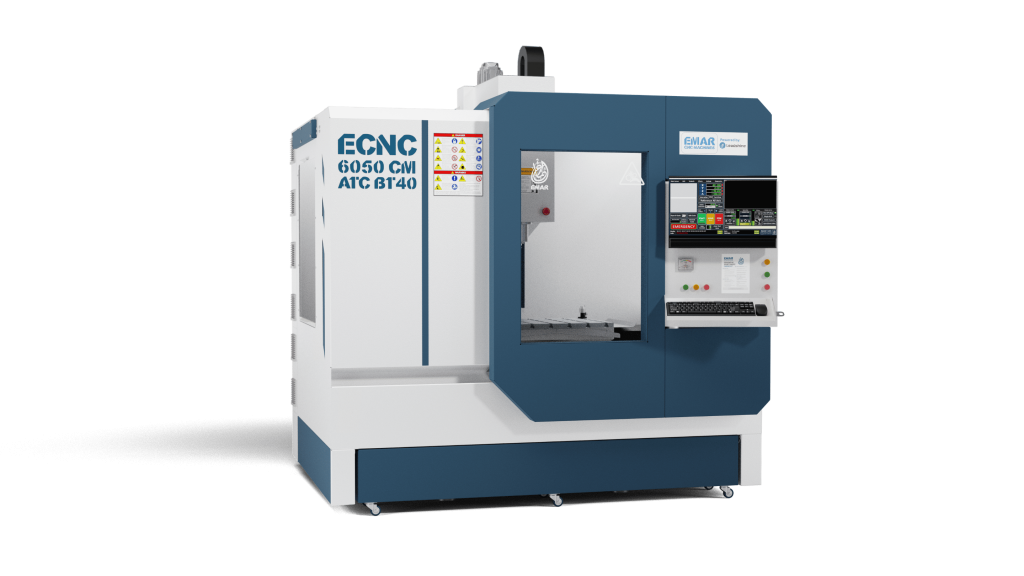

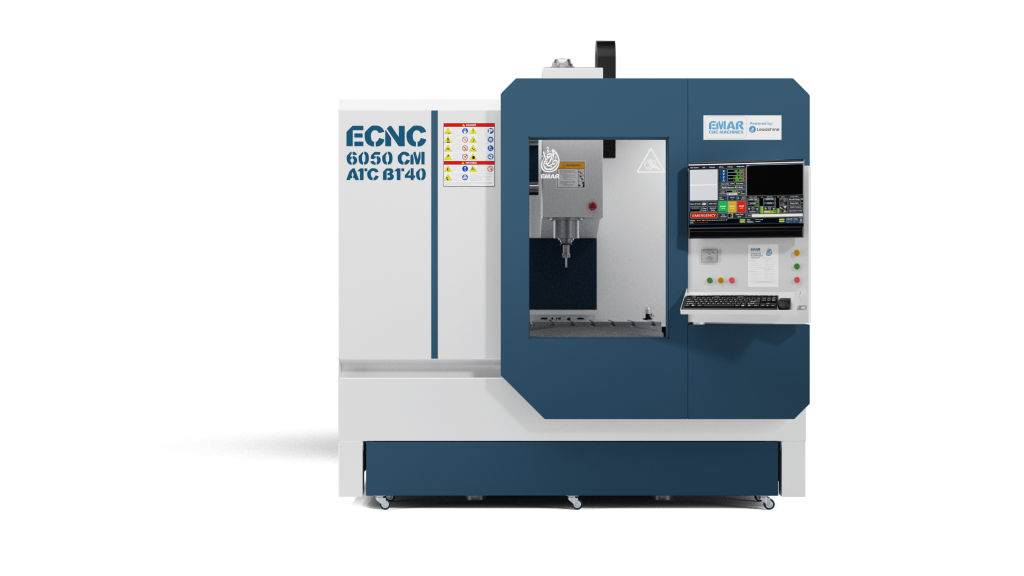

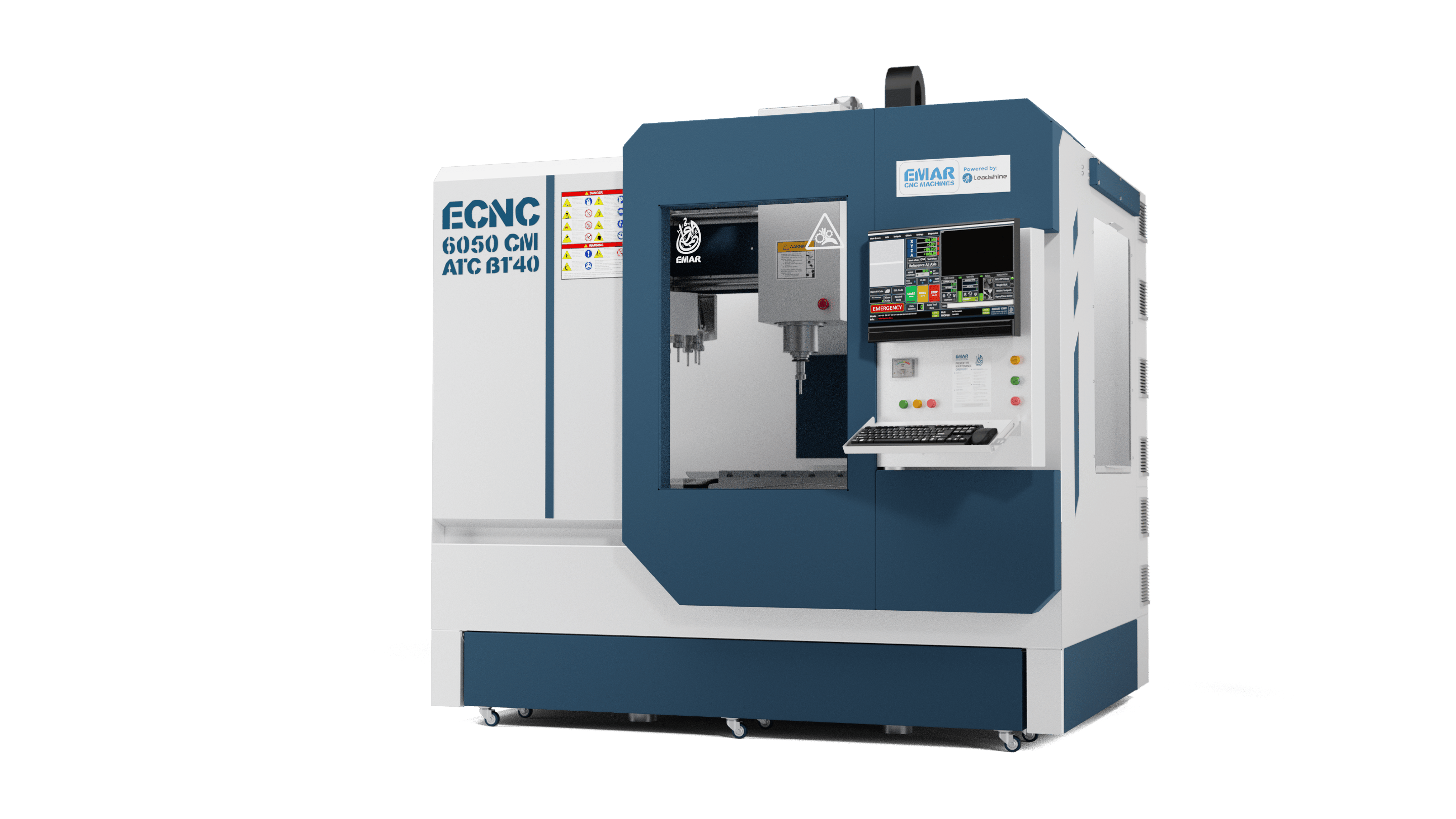

ECNC 6050 CM BT40
HARD-METAL MILLS
EMAR Mills are equipped with high-quality industrial milling parts and components, from liner guides, ball screws, high-speed spindles, servo & stepper motors, drivers, and bearings to cast-iron chassis and even electrostatic paint. Without compromising quality, this machine is unmatched in its price range.
The ECNC 6050 CM BT40 components are designed for precision, longevity, and with a variety of options and accessories, which enable you to operate the machine in various applications without further adjustments or installations. EMAR Hard-Metal mills will allow you to work at full capacity around the clock, while maintaining consistent high precision without limitations.
EMAR’s 4-Axis simultaneous rotary can produce complex work pieces with high precision and without the need for further rework. ECNC 6050 CM offers you a very high equipment flexibility with low cost of ownership, making it, without doubt, your ideal choice for a good price-performance ratio.
ECNC 6050 CM BT40
SPECIFICATIONS
|
Dimensions (W x D x H) |
2200x1800x2300 mm |
Guides and bearings |
HIWIN/TPI |
|
|
Table size |
680 x 480 mm |
Motors and drivers: |
Closed Loop Hybrid Stepper Servo Motors |
|
|
Axis travel (X,Y,Z) |
600 x 500 x 500 mm |
|
|
|
|
Spindle nose-table distance |
150 – 650 mm |
|
|
|
|
Number of axes |
3 – 4 |
Suitable for |
Dry machining / Wet processing |
|
|
Max tool diameter |
12 mm |
Millable materials: |
All soft / hard metals |
|
|
Spindle type GDZ/HQD |
water cooled |
|
Stainless, Titanium, Hardened Steel, |
|
|
Pmax ~ speed Max. |
7.5 kW 8500 rpm |
|
Cast Iron, Aluminum, Brass, Copper |
|
|
Table type / Max load |
T-Slot bed / 400 kg |
Applications: | Small plastic injection mold dies, |
|
| Control | Mach-3 | Sheet metal/Thermoforming mold dies, | ||
| Chassis | Cast-iron chassis | Blow mold dies, Footwear mold dies, | ||
| Weight |
4200 kg |
Machine parts, High-precision drilling |
EMAR reserves the right to make changes to technical specs without prior notice
EMAR Mills are equipped with high-quality industrial milling parts and components, from liner guides, ball screws, high-speed spindles, servo motors, drivers, and bearings to cast-iron chassis and even electrostatic paint. Without compromising quality, this machine is unmatched in its price range.
The ECNC 6050CM BT40 components are designed for precision, longevity, and with a variety of options and accessories, which enable you to operate the machine in various applications without further adjustments or installations. EMAR Hard-Metal mills will allow you to work at full capacity around the clock, while maintaining consistent high precision without limitations.
EMAR’s 4-Axis simultaneous rotary can produce complex work pieces with high precision and without the need for further rework. ECNC 6050 CM offers you a very high equipment flexibility with low cost of ownership, making it, without doubt, your ideal choice for a good price-performance ratio.
