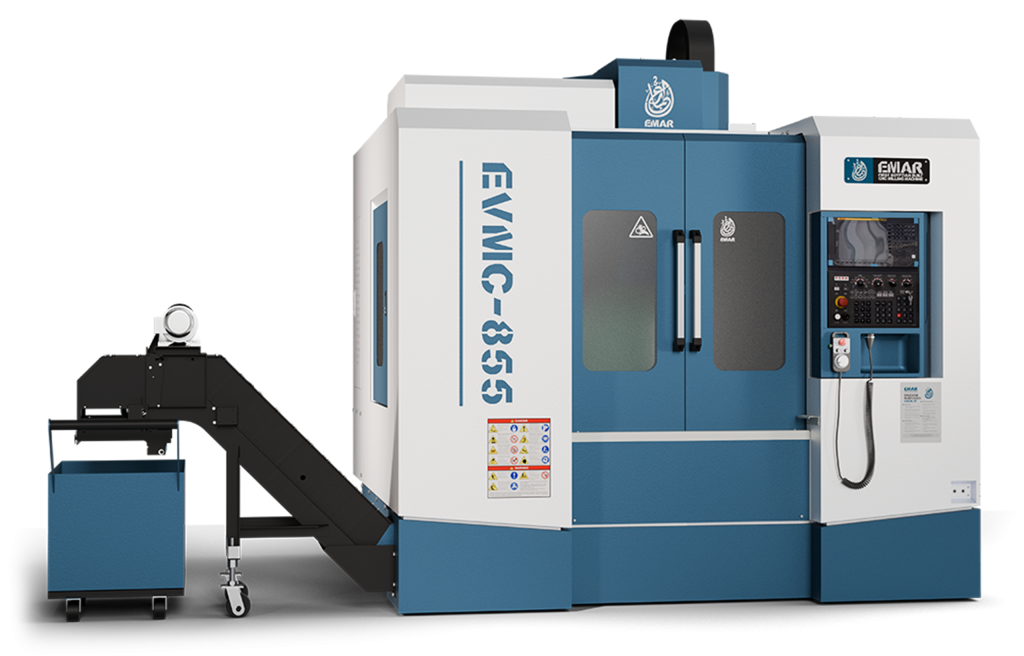

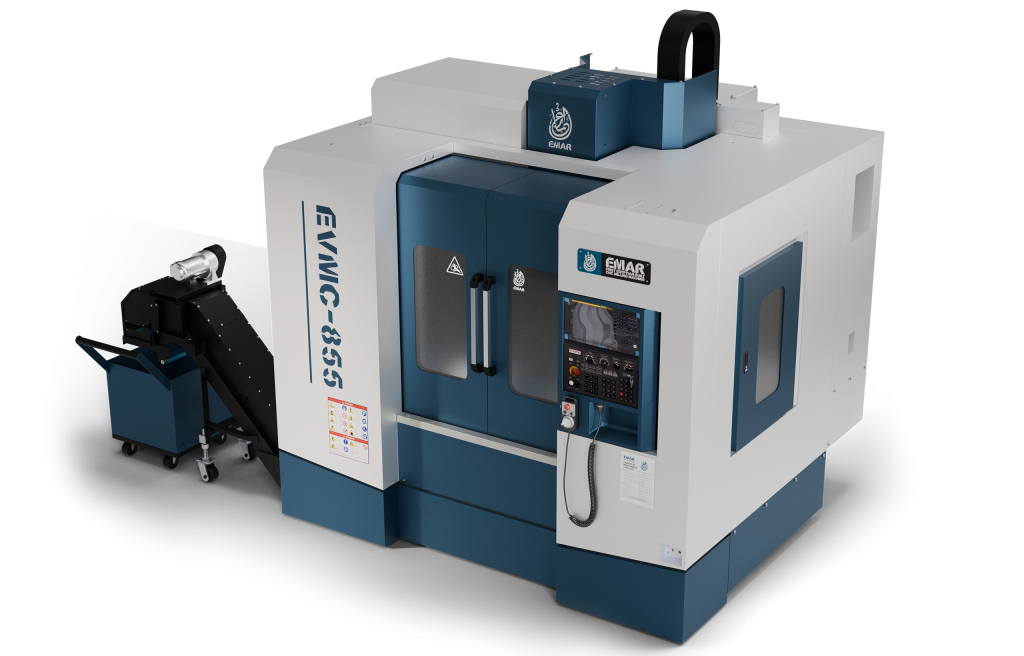

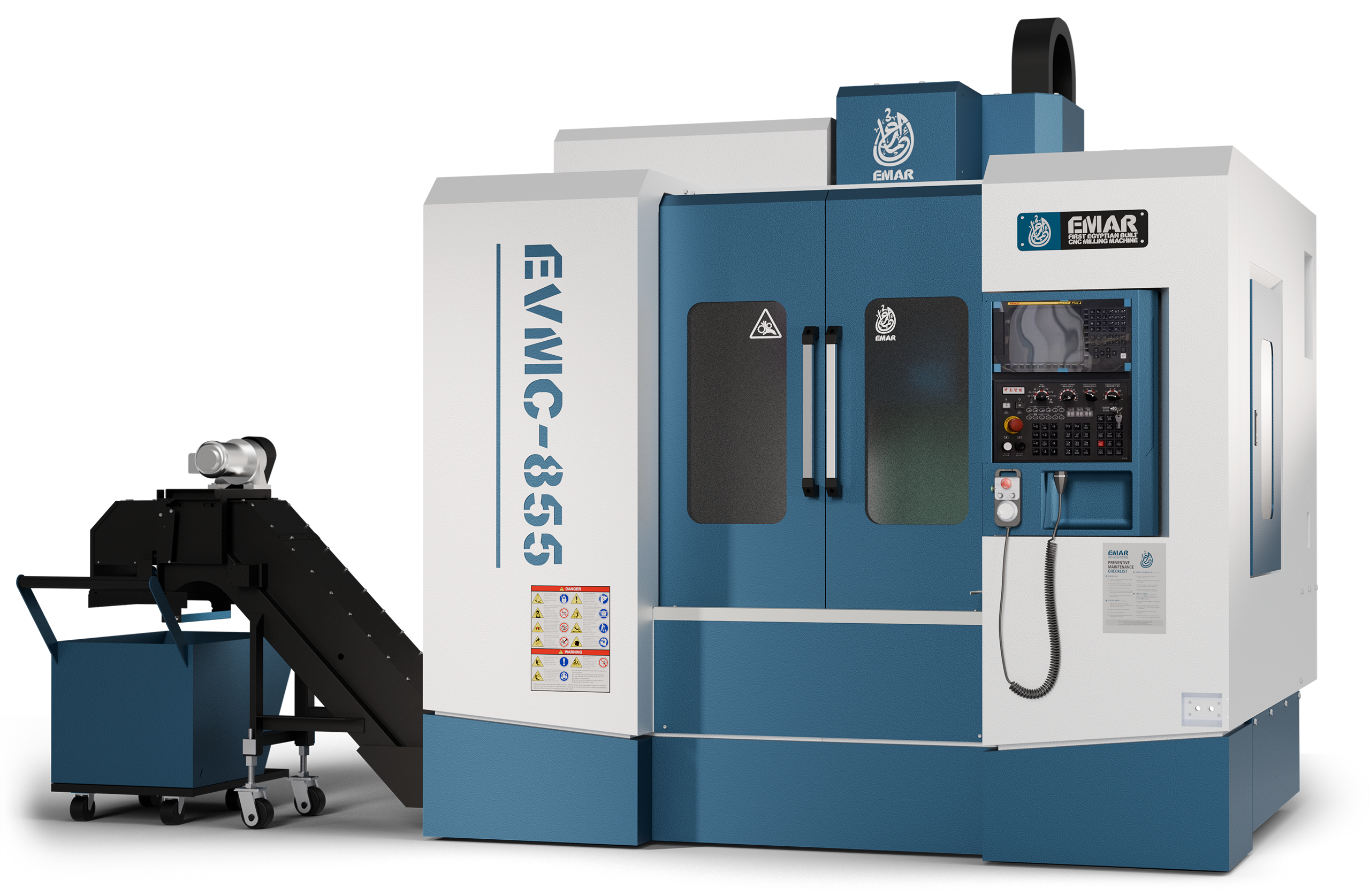

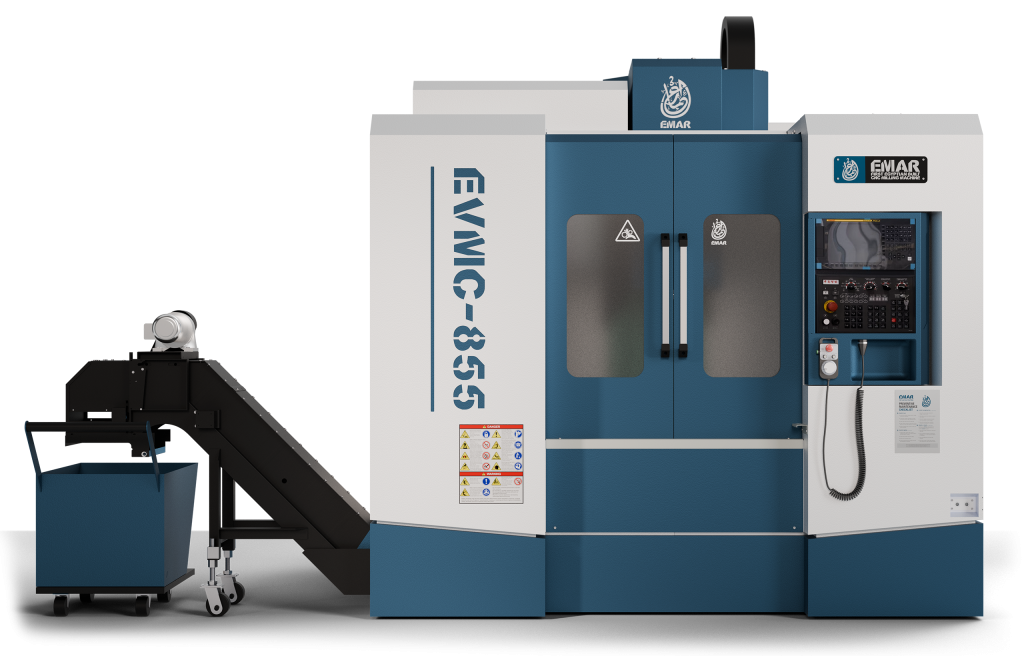

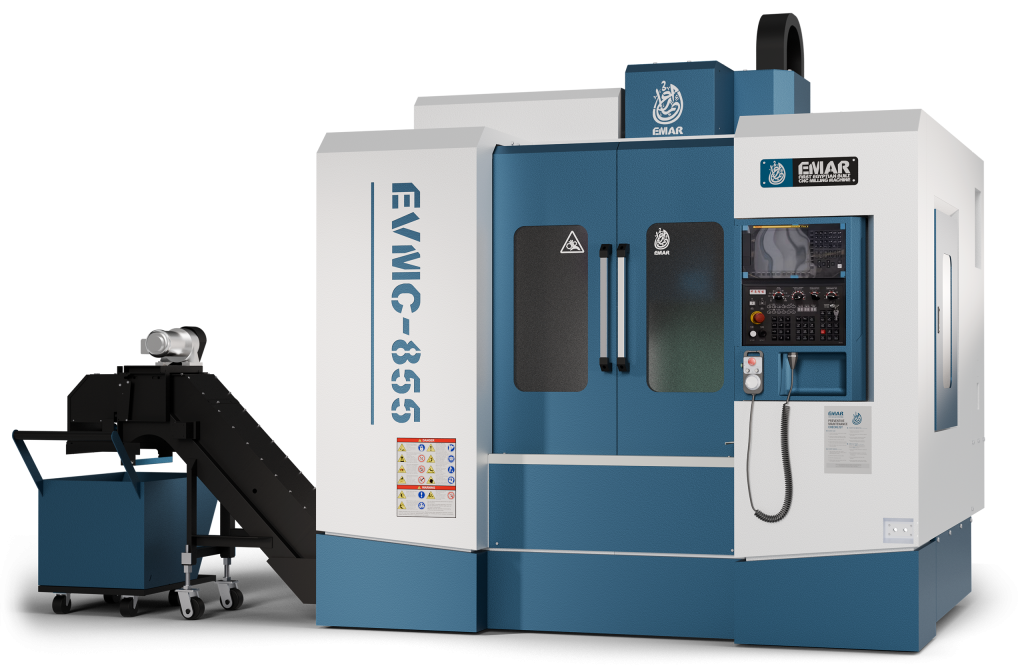

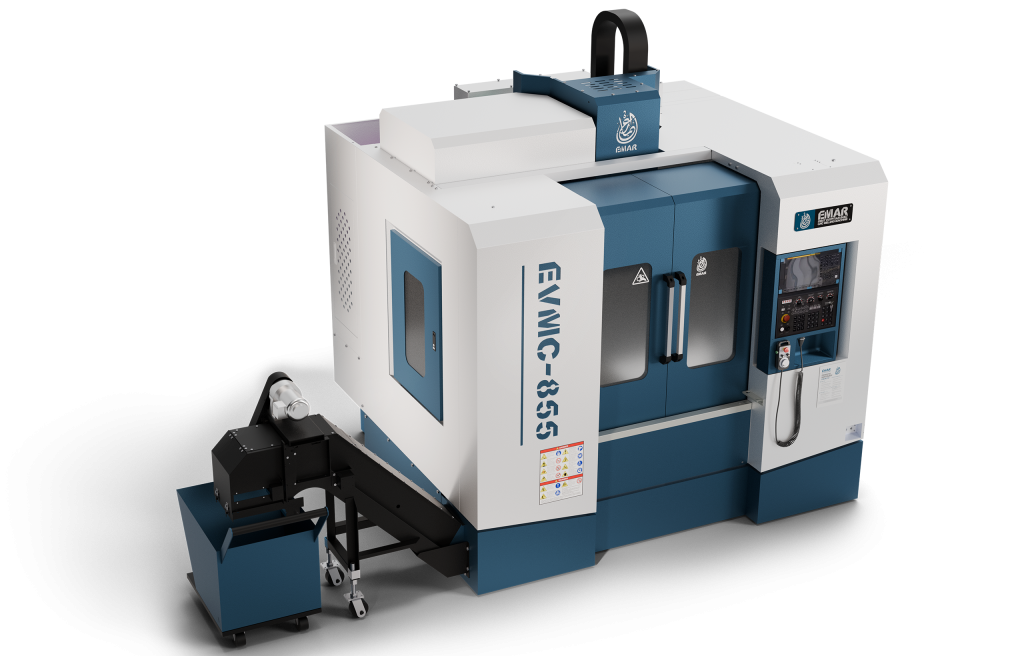

EVMC 855 BT40 ATC
HEAVY WEIGHT VERTICLE MACHINE CENTER
IMPORTED
TAIWANESE DESIGN, TECHNOLOGY & QUALITY
CHINESE ASSEMBLY, EFFICIENCY & FACILITY
EVMC 855
HIGHLIGHTS
FANUC 0i MF Plus
Robust Control
CAST IRON CHASSIS
Optimum rigidity
Minimum noise and vibrations
HIGH-QUALITY COMPONENTS
Leading linear and
bearing components
4 AXIS SIMULTANEOUS
MACHINING
High-precision
4-axis rotary
BT50
Oil COOLED SPINDLE
(7.5 – 11) kW 12k.RPM high-speed spindle
for precise results with optimum finish
DURABLE
AROUND THE CLOCK
Non-stop productivity
without compromising quality
EVMC 855 BT40 ATC
HEAVY WEIGHT VERTICLE MACHINE CENTER
The VMC 855 milling machine is a robust vertical machining center designed for precision work in workshops and factories, enabling production of high-quality parts faster and with less effort.
-
Wide motion range (3–4 axes) handle larger, more complex parts without constant repositioning, saving setup time and reducing errors.
-
Heavy-duty worktable ensures stability under heavy loads, fewer vibrations, longer machine life, and safer operation.
-
High-speed direct-drive spindle cuts through tough materials cleanly with smoother finishes, reducing polishing costs and boosting output.
-
Disc-style tool magazine holds multiple tools with fast automatic changes to minimize downtime and maximize productivity.
-
Premium components (Japanese control + Taiwanese linear guides) reliable performance, less maintenance and long-term costs.
EVMC 855 BT40 ATC
SPECIFICATIONS
Dimensions (W x D x H) |
2600x2830x2410 mm |
Operating system |
FANUC Oi MF Plus |
|
Table size |
1000 x 550 mm |
System configuration |
FANUC Japan |
|
Axis travel (X,Y,Z) |
800 x 550 x 550 mm |
Guides and bearings |
HIWIN- SKF/NSK |
|
Spindle nose-table distance |
120 – 670mm |
X/Y/Z Ball Screw Diameter |
Ø 40 mm / 16 mm pitch |
|
Number of axes |
3 – 4 |
X/Y/Z Linear Size |
35/45/45 mm |
|
Spindle hole (7:24) |
BT40 |
X/Y/Z Axis rapid |
48/48/36 m/min |
|
Spindle motor power |
7.5 – 11 KW |
X/Y/Z Axis Motor Torque |
11/11/20 N.m |
|
Spindle speed |
12,000 rpm |
X/Y/Z Axis Motor Power |
Bis 1.8/1.8/3.0 KW |
|
Spindle type |
Okada |
Feed speed |
1-10,000 mm/min |
|
Tool magazine shape |
Disc |
Positioning accuracy / Repeat |
±0.01 / ±0.006 mm |
|
Tool magazine capacity |
24 |
Accuracy testing standards |
JIS |
|
Tool change time |
2.5 sec |
Weight |
4,800kg |
EMAR reserves the right to make changes to technical specs without prior notice
