FIBER LASER CUTTING
SINGLE PLATFORM
IMPORTED
HIGH-END CHINESE QUALITY
FIBER LASER CUTTING
HIGHLIGHTS
CYPCUT CONTROL
User friendly
Integrated system
JAPANESE FUJI
SERVO DRIVERS
Faster & powerful Y-axis
with dual drivers
HIGH-QUALITY COMPONENTS
Leading linear and
bearing components
BOCI BLT310
AUTO FOCUS
Focal distance
automatic follow-up
RAYCUS CE
LASER SOURCE
BEST ON THE MARKET
1,500 ~ 30,000 kW
DURABLE
AROUND THE CLOCK
Non-stop productivity
without compromising quality
FIBERLASER CUTTING
SINGLE PLATFORM

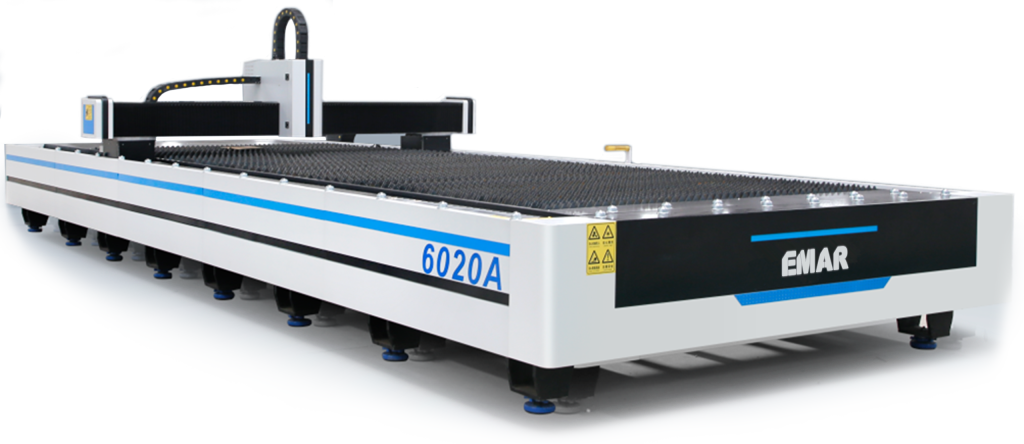

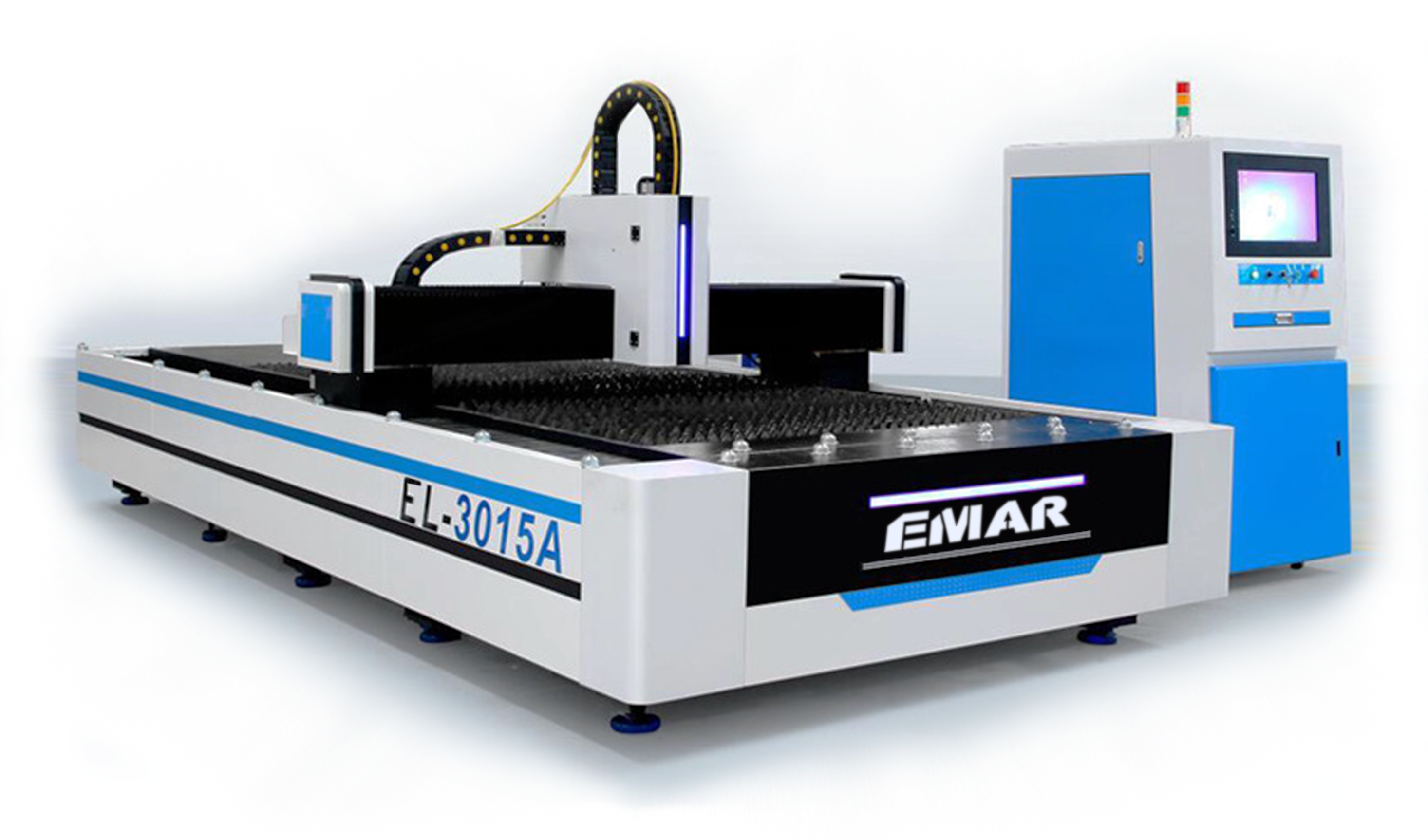

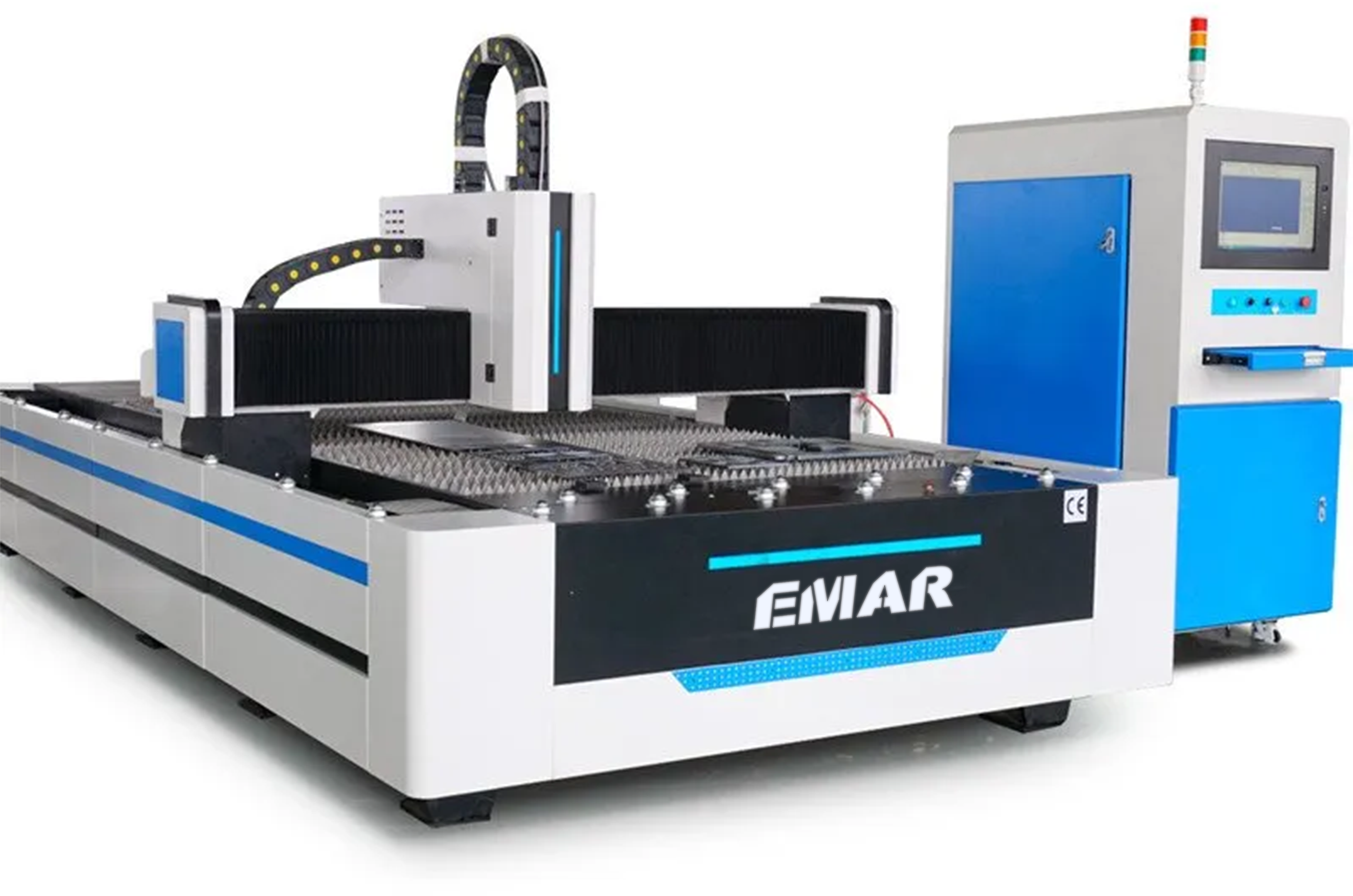

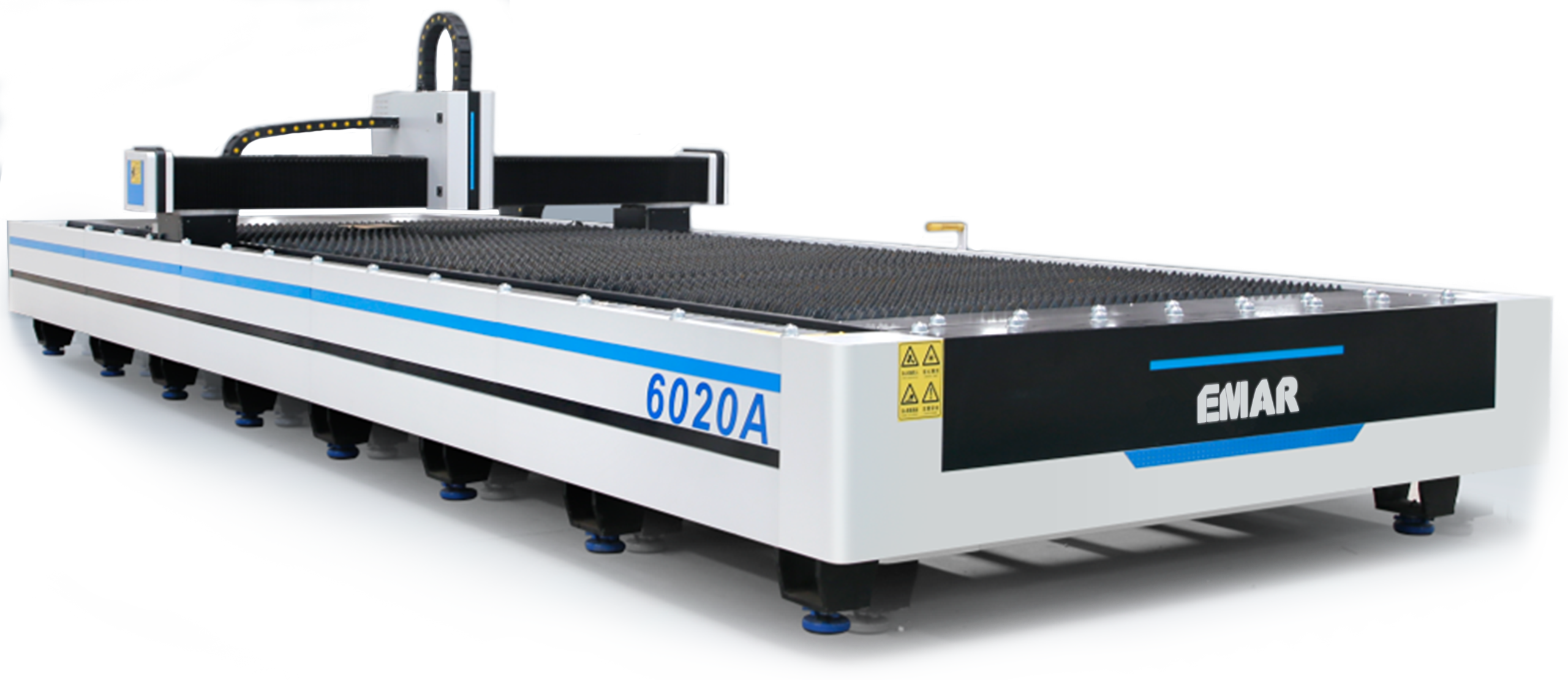

Open Single Platform Fiber Laser Cutting Machine
Built for speed, precision, and reliability, this fiber laser cutting machine offers powerful performance for metal fabrication in demanding industrial environments.
-
Raycus CE Fiber Laser Source delivers clean, high-speed cuts across various metals.
-
Cypcut Control System ensures user-friendly operation with advanced cutting optimization.
-
Dual Yaskawa Servo Motors with precision Shimpo reducer enable fast, accurate motion and stable performance.
-
Germany ROR/YYC Gears and Taiwan HIWIN Square Rails provide smooth, high-precision movement.
-
Auto-focus BOCI BLT310 Laser Head maintains cutting accuracy across material thicknesses.
-
Integrated Cast Aluminum Beam ensures rigidity with reduced weight for high-speed movement.
-
Japan SMC / Airtac Pneumatics and French Schneider Electronics guarantee durable, responsive control.
-
30KVA Voltage Stabilizer protects components and ensures consistent performance.
-
Smoke Purification System and Hanli Water Cooling Unit keep the machine clean and stable during operation.
Ideal for high-efficiency, continuous cutting with minimal downtime.
CNC FIBER LASER CUTTING MACHINE
SPECIFICATIONS
|
Laser Power |
3000/6000 W |
Laser type |
Raycus CE |
|
|
|
12 / 20 / 30 / 40 kW |
Control system |
Cypcut |
|
|
Working size (customized) |
1500 x 3000 mm 2000 x 4000 mm |
Guides and bearings |
HIWIN square rail |
|
|
1500 x (6000/8000/12000) mm 2000 x (6000/8000/12000) mm |
Gears |
Germany ROR/YYC |
||
|
2500 x (6000/8000/12000) mm 3000 x (6000/8000/12000) mm |
Max. cutting speed (considering laser power) |
0-80m/min (considering material and thickness) |
||
| Platform type | Single open bed |
X/Y/Z Axis operation precision |
≤±0.05mm/m |
|
|
Water cooler |
Hanli |
X/Y/Z Axis repeat precision |
≤±0.03mm /m |
|
|
Gantry beam |
Integrated cast Aluminum |
Min. line width |
≤0.15mm |
|
|
Laser head |
BOCI auto focus |
Max. running speed |
120m/min |
|
|
Reducer |
Shimpo |
Drivers system |
Japanese Yaskawa servo motors |
|
|
Electronic parts |
French Schneider |
Transmission way Y/X-Axis |
Double driver gear rack / ball screw |
|
|
Pneumatic parts |
Japan SMC /Airtac |
Power requirements |
220 V / 60 Hz adjustable |
EMAR reserves the right to make changes to technical specs without prior notice
